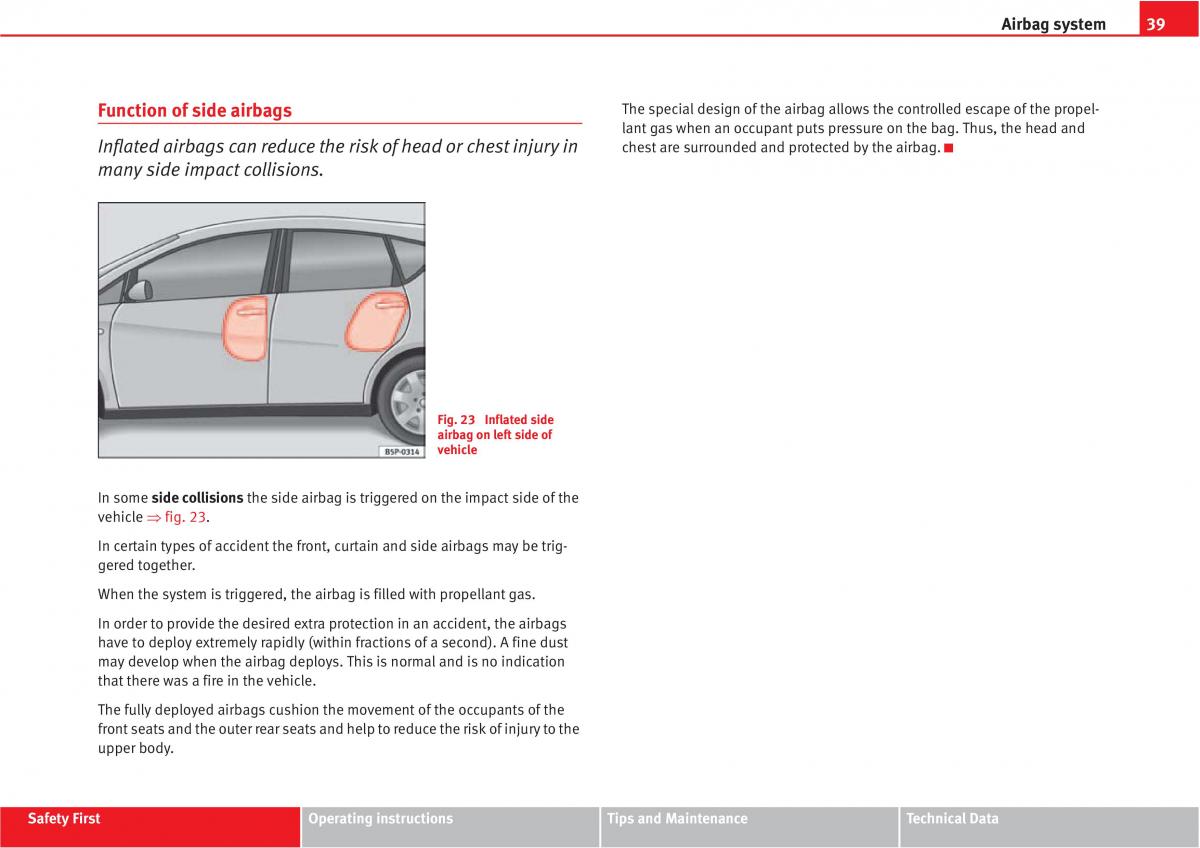

Airbag system39
Function of side airbags The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
Inflated airbags can reduce the risk of head or chest injury in chest are surrounded and protected by the airbag.
many side impact collisions.
Fig. 23 Inflated side
airbag on left side of
vehicle
In some side collisions the side airbag is triggered on the impact side of the
vehicle fig. 23.
In certain types of accident the front, curtain and side airbags may be trig-
gered together.
When the system is triggered, the airbag is filled with propellant gas.
In order to provide the desired extra protection in an accident, the airbags
have to deploy extremely rapidly (within fractions of a second). A fine dust
may develop when the airbag deploys. This is normal and is no indication
that there was a fire in the vehicle.
The fully deployed airbags cushion the movement of the occupants of the
front seats and the outer rear seats and help to reduce the risk of injury to the
upper body.
Safety First Operating instructions Tips and Maintenance Technical Data
