text version of content this owner's manual page from owners manual to the vehicle VW Tiguan, year of production 2011:

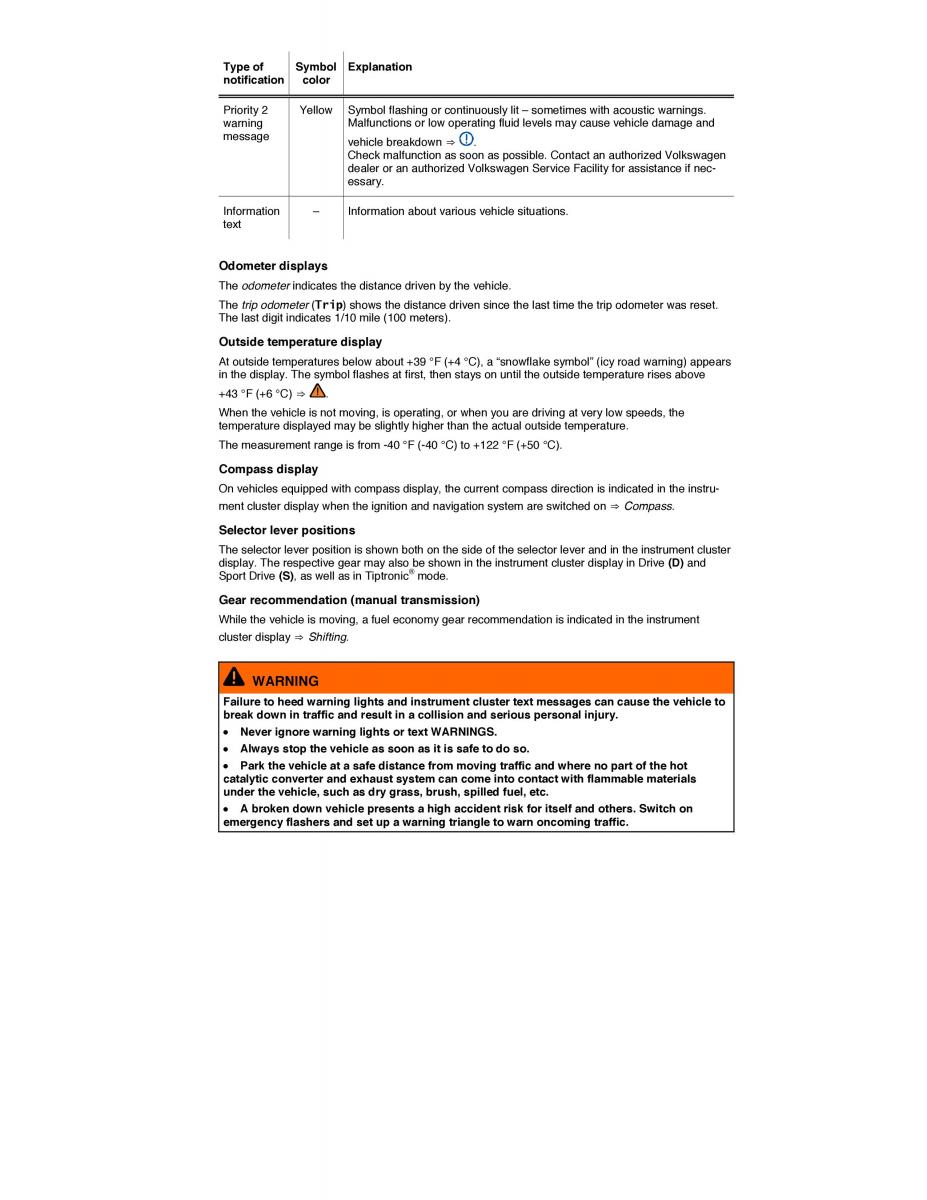

Type of Symbol Explanation notification color Priority 2 Yellow Symbol flashing or continuously lit – sometimes with acoustic warnings. warning Malfunctions or low operating fluid levels may cause vehicle damage and message vehicle breakdown ⇒ . Check malfunction as soon as possible. Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance if nec- essary. Information – Information about various vehicle situations. text Odometer displays The odometer indicates the distance driven by the vehicle. The trip odometer (Trip) shows the distance driven since the last time the trip odometer was reset. The last digit indicates 1/10 mile (100 meters). Outside temperature display At outside temperatures below about +39 °F (+4 °C), a “snowflake symbol” (icy road warning) appears in the display. The symbol flashes at first, then stays on until the outside temperature rises above +43 °F (+6 °C) ⇒ . When the vehicle is not moving, is operating, or when you are driving at very low speeds, the temperature displayed may be slightly higher than the actual outside temperature. The measurement range is from -40 °F (-40 °C) to +122 °F (+50 °C). Compass display On vehicles equipped with compass display, the current compass direction is indicated in the instru- ment cluster display when the ignition and navigation system are switched on ⇒ Compass. Selector lever positions The selector lever position is shown both on the side of the selector lever and in the instrument cluster display. The respective gear may also be shown in the instrument cluster display in Drive (D) and ® Sport Drive (S), as well as in Tiptronic mode. Gear recommendation (manual transmission) While the vehicle is moving, a fuel economy gear recommendation is indicated in the instrument cluster display ⇒ Shifting. WARNING Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury. x Never ignore warning lights or text WARNINGS. x Always stop the vehicle as soon as it is safe to do so. x Park the vehicle at a safe distance from moving traffic and where no part of the hot catalytic converter and exhaust system can come into contact with flammable materials under the vehicle, such as dry grass, brush, spilled fuel, etc. x A broken down vehicle presents a high accident risk for itself and others. Swchit on emergency flashers and set up a warning triangle to warn oncoming traffic.
