owners manual Tesla S

all ratings: 0 average rating: 5

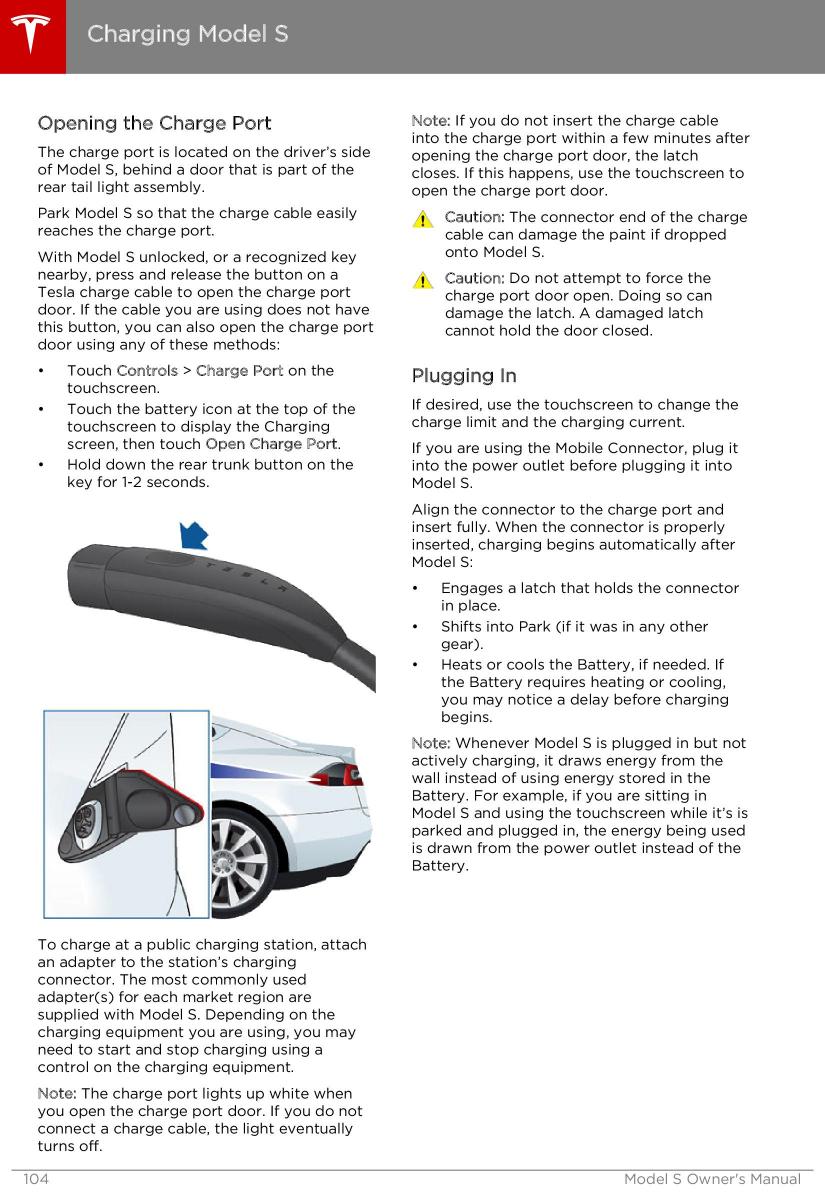

Charging Model S Note: If you do not insert the charge cable Opening the Charge Port into the charge port within a few minutes after The charge port is located on the drivers sideopening the charge port door, the latch of Model S, behind a door that is part of thecloses. If this happens, use the touchscreen to rear tail light assembly. open the charge port door. Park Model S so that the charge cable easilyCaution: The connector end of the charge reaches the charge port. cable can damage the paint if dropped With Model S unlocked, or a recognized keyonto Model S. nearby, press and release the button on aCaution: Do not attempt to force the Tesla charge cable to open the charge portcharge port door open. Doing so can door. If the cable you are using does not havedamage the latch. A damaged latch this button, you can also open the charge portcannot hold the door closed. door using any of these methods: • Touch Controls > Charge Port on thePlugging In touchscreen. • Touch the battery icon at the top of theIf desired, use the touchscreen to change the touchscreen to display the Chargingcharge limit and the charging current. screen, then touch Open Charge Port.If you are using the Mobile Connector, plug it • Hold down the rear trunk button on theinto the power outlet before plugging it into key for 1-2 seconds. Model S. Align the connector to the charge port and insert fully. When the connector is properly inserted, charging begins automatically after Model S: • Engages a latch that holds the connector in place. • Shifts into Park (if it was in any other gear). • Heats or cools the Battery, if needed. If the Battery requires heating or cooling, you may notice a delay before charging begins. Note: Whenever Model S is plugged in but not actively charging, it draws energy from the wall instead of using energy stored in the Battery. For example, if you are sitting in Model S and using the touchscreen while its is parked and plugged in, the energy being used is drawn from the power outlet instead of the Battery. To charge at a public charging station, attach an adapter to the stations charging connector. The most commonly used adapter(s) for each market region are supplied with Model S. Depending on the charging equipment you are using, you may need to start and stop charging using a control on the charging equipment. Note: The charge port lights up white when you open the charge port door. If you do not connect a charge cable, the light eventually turns off. 104 Model S Owner's Manual
