text version of content this owner's manual page from owners manual to the vehicle Tesla S, year of production 2012:

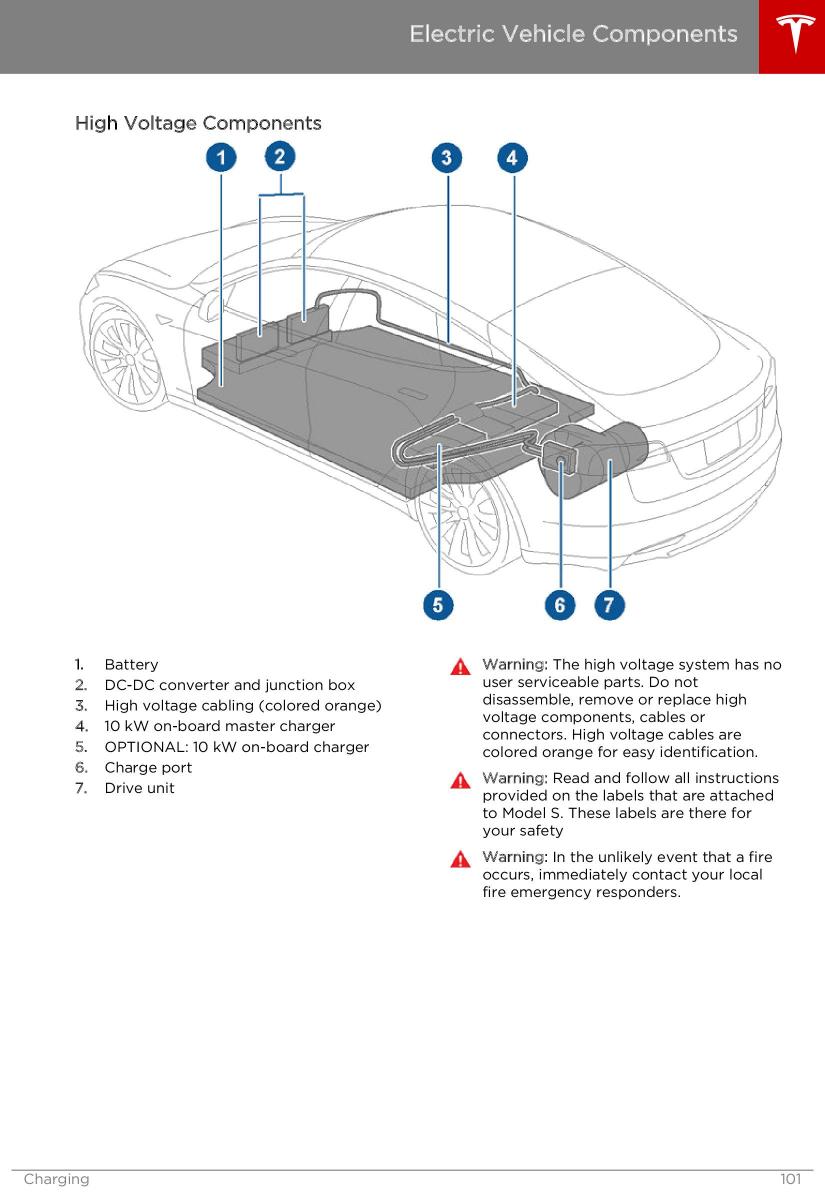

Electric Vehicle Components High Voltage Components 1.Battery Warning: The high voltage system has no 2.DC-DC converter and junction boxuser serviceable parts. Do not 3.High voltage cabling (colored orange)disassemble, remove or replace high 4.10 kW on-board master charger voltage components, cables or 5.OPTIONAL: 10 kW on-board chargerconnectors. High voltage cables are colored orange for easy identification. 6.Charge port Warning: Read and follow all instructions 7.Drive unit provided on the labels that are attached to Model S. These labels are there for your safety Warning: In the unlikely event that a fire occurs, immediately contact your local fire emergency responders. Charging 101
