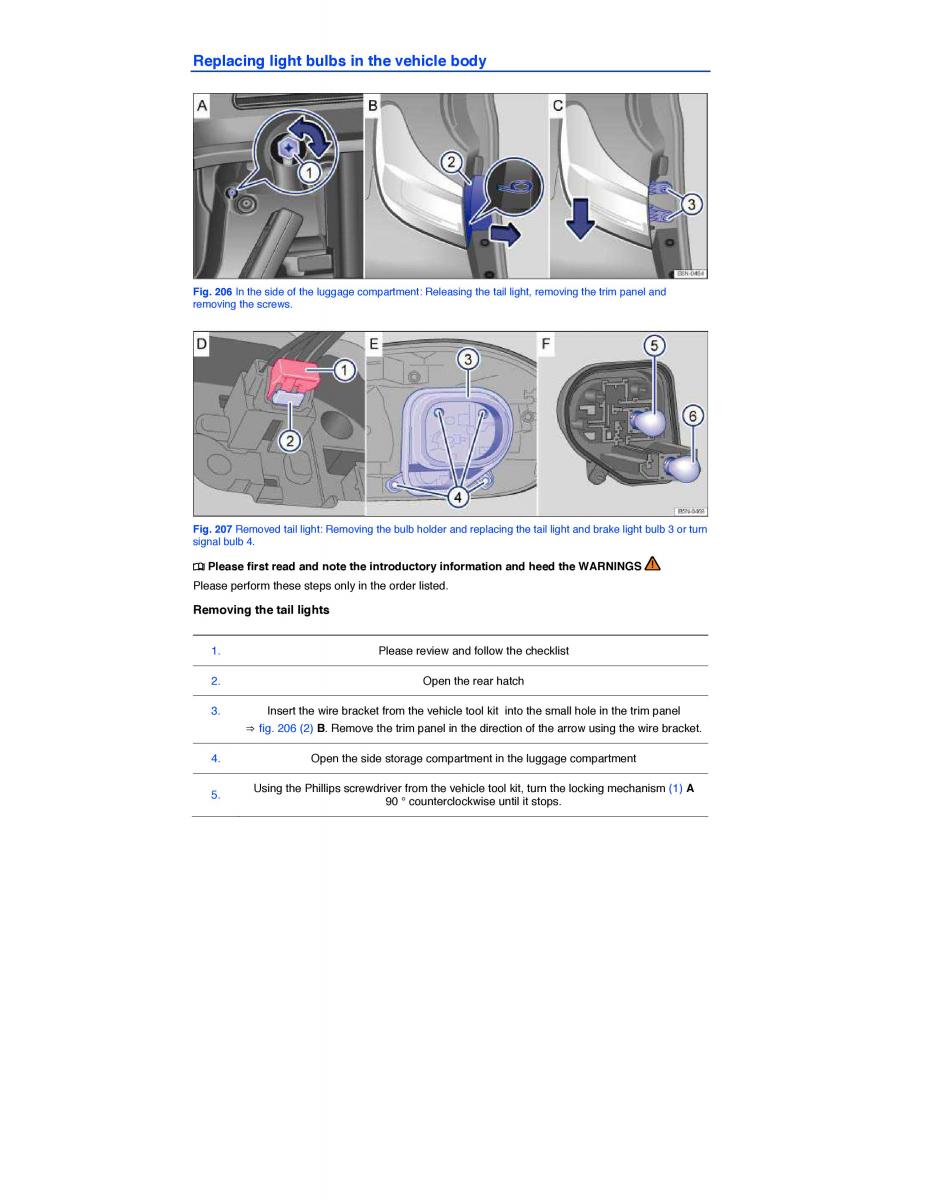

Replacing light bulbs in the vehicle body
Fig. 206 In the side of the luggage compartment: Releasing the tail light, removing the trim panel and
removing the screws.
Fig. 207 Removed tail light: Removing the bulb holder and replacing the tail light and brake light bulb 3 or turn
signal bulb 4.
¤ Please first read and note the introductory information and heed the WARNINGS
Please perform these steps only in the order listed.
Removing the tail lights
1. Please review and follow the checklist
2. Open the rear hatch
3. Insert the wire bracket from the vehicle tool kit into the small hole in the trim panel
⇒ fig. 206 (2) B. Remove the trim panel in the direction of the arrow using the wire bracket.
4. Open the side storage compartment in the luggage compartment
5. Using the Phillips screwdriver from the vehicle tool kit, turn the locking mechanism (1) A
90 ° counterclockwise until it stops.
