text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

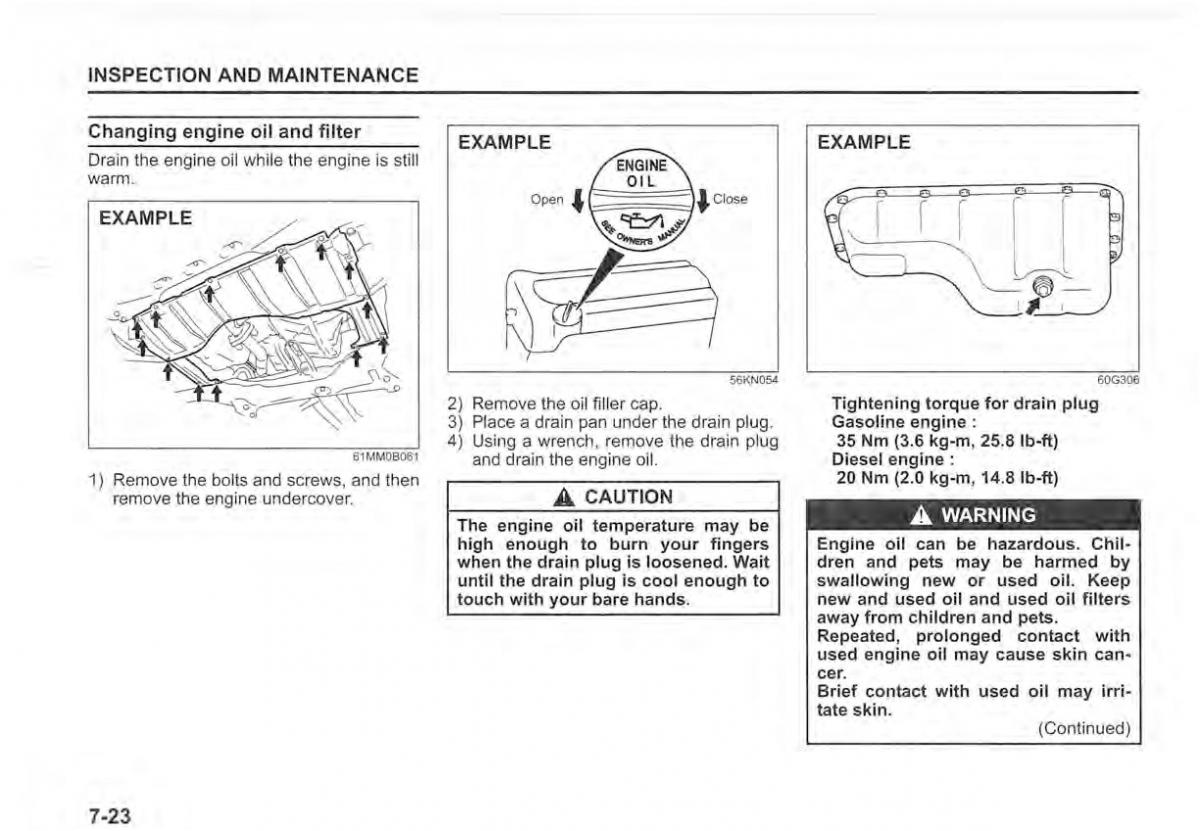

INSPECTION AND MAINTENANCE Changing engine oil and filter EXAMPLE EXAMPLE Drain the engine oil while the engine is still warm. Open "\.:::::::=====:::=:lJ Close 56KN054 2) Remove the oil filler cap. 3) Place a drain pan under the drain plug. 4) Using a wrench, remove the drain plug 61MMOB061 and drain the engine oil. 1) Remove the bolts and screws, and then A CAUTION remove the engine undercover. The engine oil temperature may be high enough to burn your fingers when the drain plug is loosened. Wait until the drain plug is cool enough to touch with your bare hands. 7-23
