text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

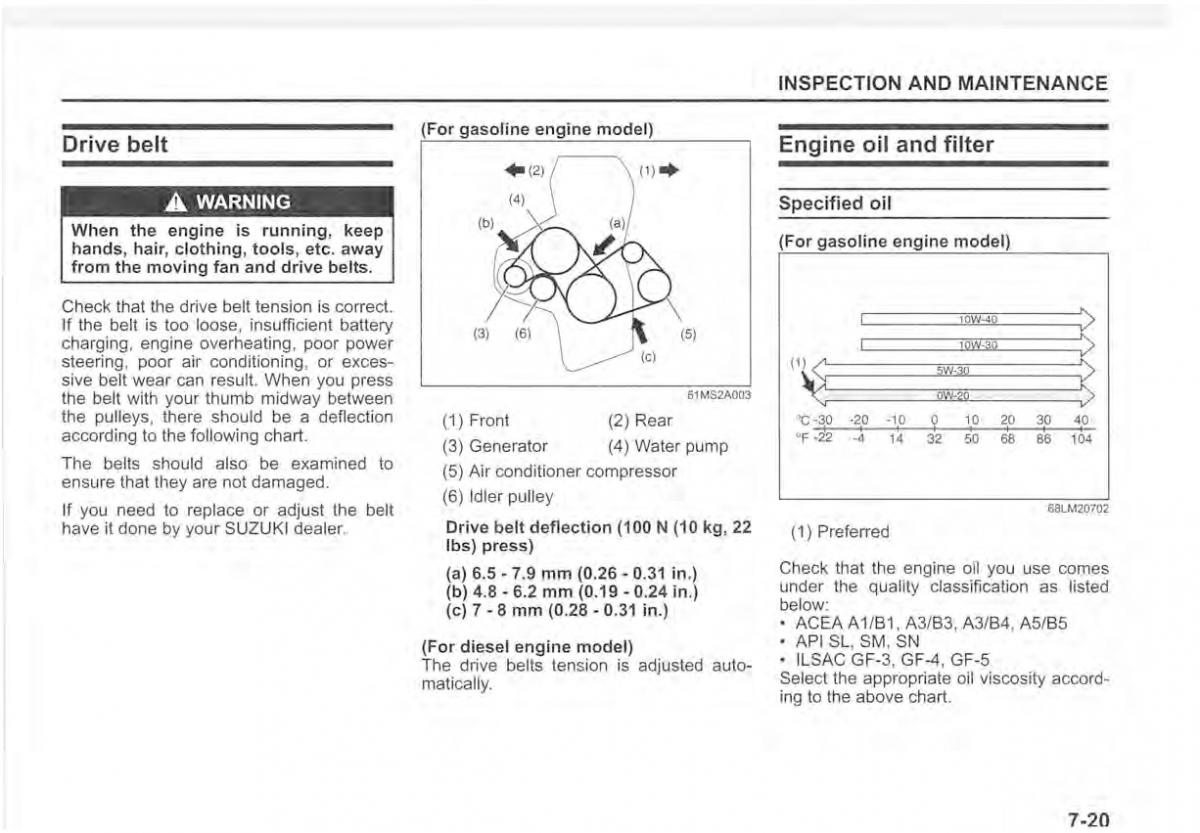

INSPECTION AND MAINTENANCE Drive belt (For gasoline engine model) Engine oil and filter A WARNING Specified oil When the engine is running, keep (For gasoline engine model) hands, hair, clothing, tools, etc. away from the moving fan and drive belts. Check that the drive belt tension is correct. 10W-40 If the belt is too loose, insufficient battery :> charging, engine overheating, poor power 10W-30 :> steering, poor air conditioning, or exces- (1)< 5W-30 :> sive belt wear can result. When you press the belt with your thumb midway between 61 MS2A003 the pulleys, there should be a deflection (1) Front (2) Rear according to the following chart. (3) Generator (4) Water pump The belts should also be examined to (5) Air conditioner compressor ensure that they are not damaged. (6) Idler pulley If you need to replace or adjust the belt Drive belt deflection (100 N (10 kg, 22 have it done by your SUZUKI dealer. Ibs) press) (a) 6.5 - 7.9 mm (0.26 - 0.31 in.) (b) 4.8 - 6.2 mm (0.19 - 0.24 in.) (c) 7 - 8 mm (0.28 - 0.31 in.) (For diesel engine model) The drive belts tension is adjusted auto- matically.
