owners manual Honda Prelude

owners manual Honda Prelude - year of production: 1987, 1988, 1989, 1990, 1991 - Honda Prelude III 3 owners manual EN

Document: pdf (2.03 MB) 143 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Honda Prelude, year of production 1987 - 1991:

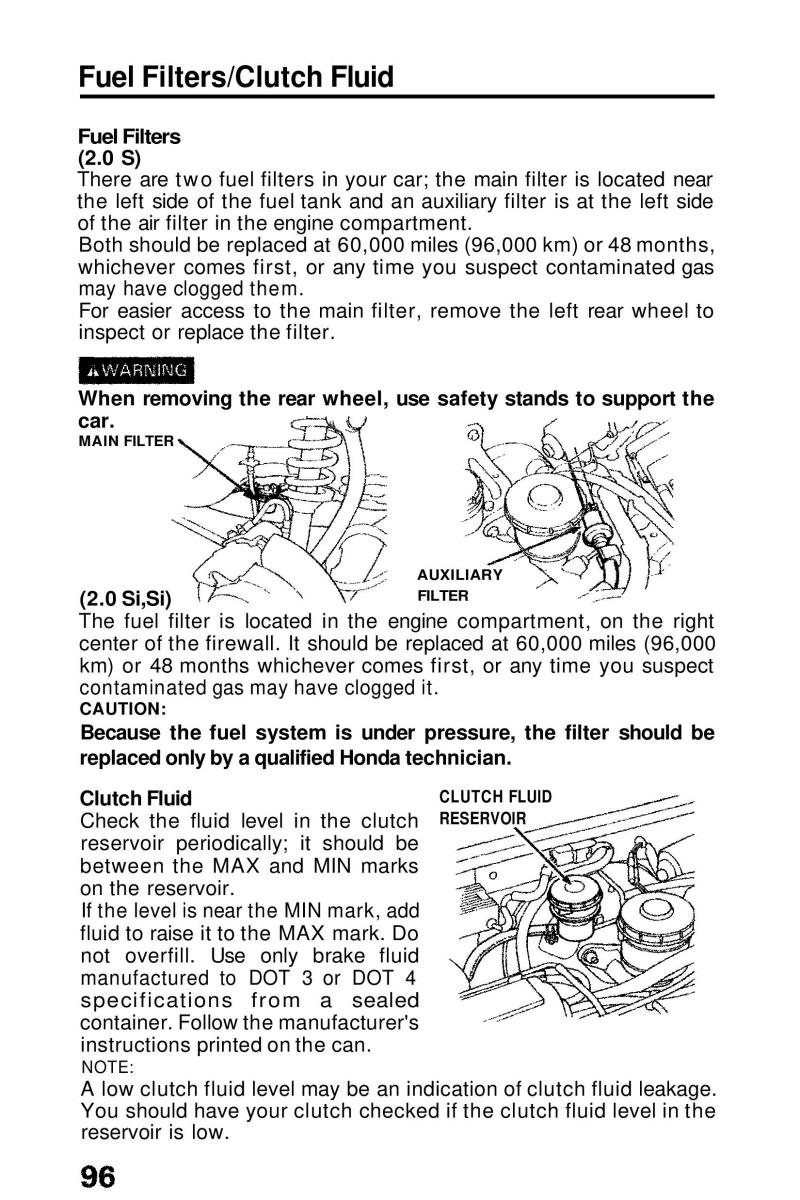

Main Menu ▲ ▼ Fuel Filters/Clutch Fluid Fuel Filters (2.0 S) There are two fuel filters in your car; the main filter is located near the left side of the fuel tank and an auxiliary filter is at the left side of the air filter in the engine compartment. Both should be replaced at 60,000 miles (96,000 km) or 48 months, whichever comes first, or any time you suspect contaminated gas may have clogged them. For easier access to the main filter, remove the left rear wheel to inspect or replace the filter. When removing the rear wheel, use safety stands to support the car. MAIN FILTER AUXILIARY (2.0 Si,Si) FILTER The fuel filter is located in the engine compartment, on the right center of the firewall. It should be replaced at 60,000 miles (96,000 km) or 48 months whichever comes first, or any time you suspect contaminated gas may have clogged it. CAUTION: Because the fuel system is under pressure, the filter should be replaced only by a qualified Honda technician. Clutch Fluid CLUTCH FLUID RESERVOIR Check the fluid level in the clutch reservoir periodically; it should be between the MAX and MIN marks on the reservoir. If the level is near the MIN mark, add fluid to raise it to the MAX mark. Do not overfill. Use only brake fluid manufactured to DOT 3 or DOT 4 specifications from a sealed container. Follow the manufacturer's instructions printed on the can. NOTE: A low clutch fluid level may be an indication of clutch fluid leakage. You should have your clutch checked if the clutch fluid level in the reservoir is low.
