owners manual Honda Prelude

owners manual Honda Prelude - year of production: 1987, 1988, 1989, 1990, 1991 - Honda Prelude III 3 owners manual EN

Document: pdf (2.03 MB) 143 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Honda Prelude, year of production 1987 - 1991:

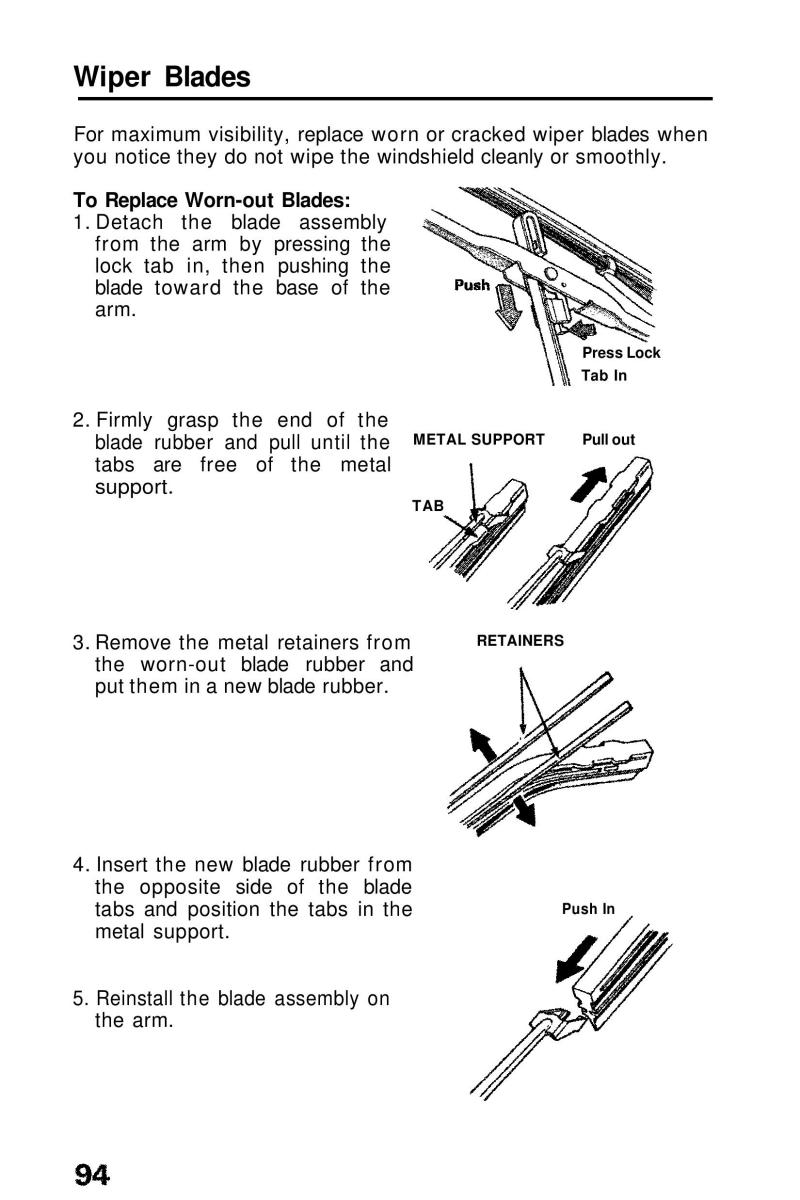

Main Menu ▲ ▼ Wiper Blades For maximum visibility, replace worn or cracked wiper blades when you notice they do not wipe the windshield cleanly or smoothly. To Replace Wornout Blades: 1. Detach the blade assembly from the arm by pressing the lock tab in, then pushing the blade toward the base of the arm. Press Lock Tab In 2. Firmly grasp the end of the METAL SUPPORT Pull out blade rubber and pull until the tabs are free of the metal support. TAB 3. Remove the metal retainers fromRETAINERS the wornout blade rubber and put them in a new blade rubber. 4. Insert the new blade rubber from the opposite side of the blade tabs and position the tabs in the Push In metal support. 5. Reinstall the blade assembly on the arm.
