owners manual VW Tiguan

all ratings: 0 average rating: 5

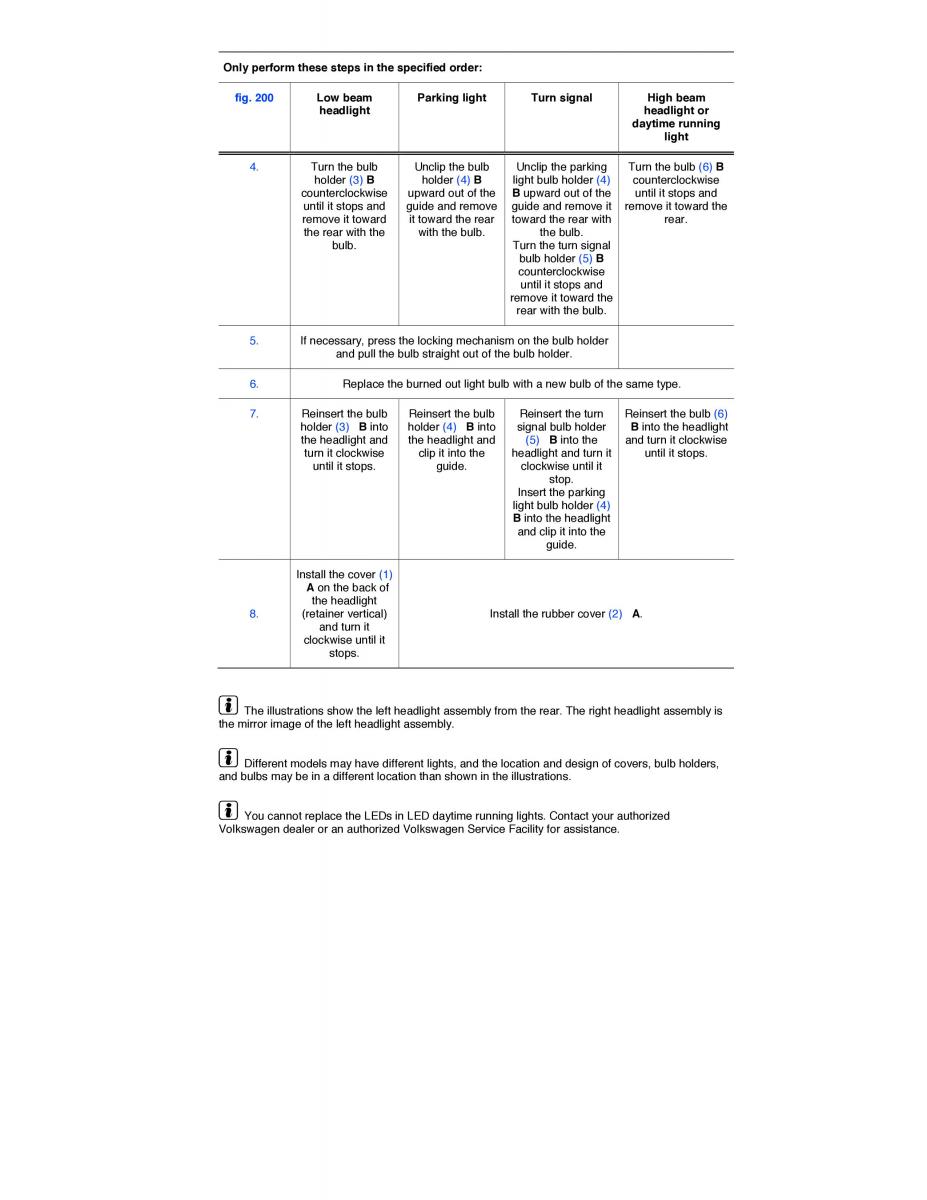

Only perform these steps in the specified order: fig. 200 Low beam Parking light Turn signal High beam headlight headlight or daytime running light 4. Turn the bulb Unclip the bulb Unclip the parking Turn the bulb (6) B holder (3) B holder (4) B light bulb holder (4) counterclockwise counterclockwise upward out of the B upward out of the until it stops and until it stops and guide and remove guide and remove it remove it toward the remove it toward it toward the rear toward the rear with rear. the rear with the with the bulb. the bulb. bulb. Turn the turn signal bulb holder (5) B counterclockwise until it stops and remove it toward the rear with the bulb. 5. If necessary, press the locking mechanism on the bulb holder and pull the bulb straight out of the bulb holder. 6. Replace the burned out light bulb with a new bulb of the same type. 7. Reinsert the bulb Reinsert the bulb Reinsert the turn Reinsert the bulb (6) holder (3) B into holder (4) B into signal bulb holder B into the headlight the headlight and the headlight and (5) B into the and turn it clockwise turn it clockwise clip it into the headlight and turn it until it stops. until it stops. guide. clockwise until it stop. Insert the parking light bulb holder (4) B into the headlight and clip it into the guide. Install the cover (1) A on the back of the headlight Install the rubber cover (2) A. 8. (retainer vertical) and turn it clockwise until it stops. The illustrations show the left headlight assembly from the rear. The right headlight assembly is the mirror image of the left headlight assembly. Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations. You cannot replace the LEDs in LED daytime running lights. Contact your authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance.
