text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

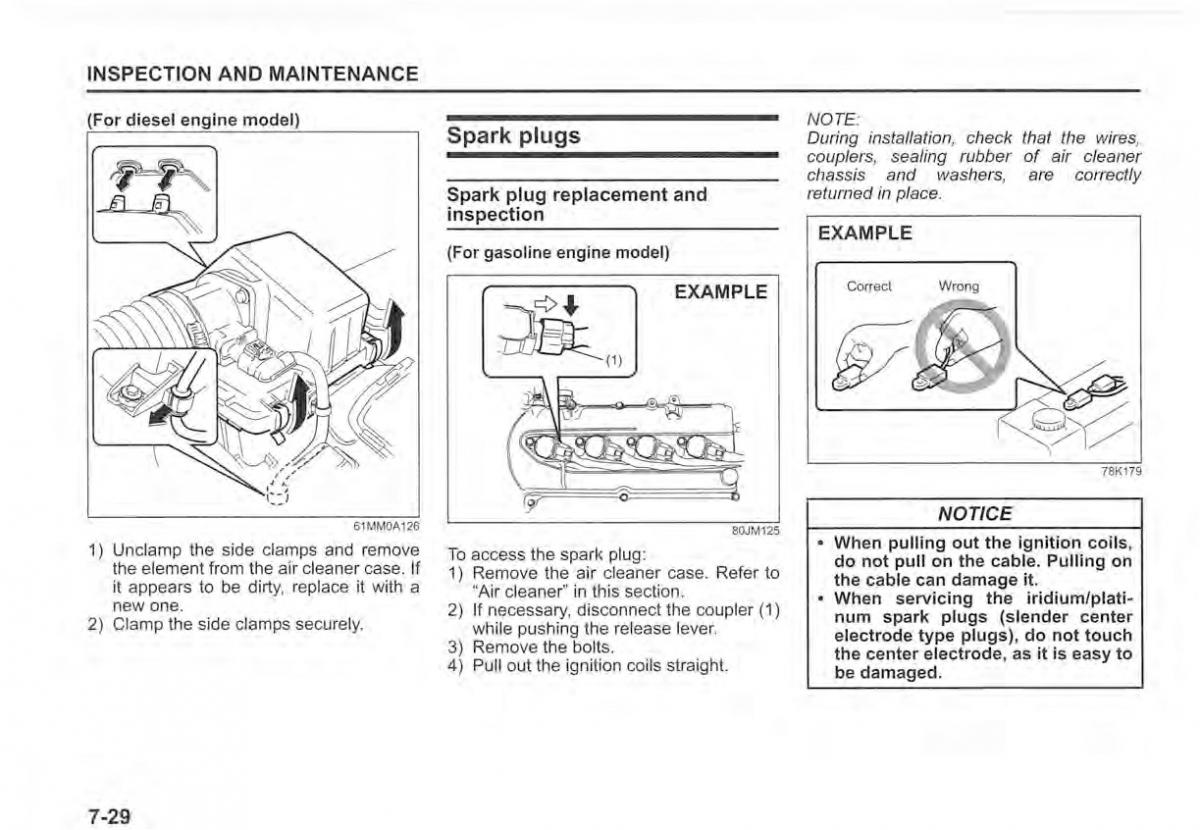

INSPECTION AND MAINTENANCE (For diesel engine model) Spark plugs NOTE: During installation, check that the wires, of air cleaner couplers, sealing rubber chassis and washers, are correctly in place. Spark plug replacement and returned inspection EXAMPLE (For gasoline engine model) EXAMPLE Correct Wrong NOTICE 1) Unclamp the side clamps and remove To access the spark plug: • When pulling out the ignition coils, the element from the air cleaner case. If 1) Remove the air cleaner case. Refer to do not pull on the cable. Pulling on it appears to be dirty, replace it with a "Air cleaner" in this section. the cable can damage it. new one. 2) If necessary, disconnect the coupler (1) • When servicing the iridium/plati- 2) Clamp the side clamps securely. while pushing the release lever. num spark plugs (slender center 3) Remove the bolts. electrode type plugs), do not touch the center 4) Pull out the ignition coils straight. electrode, as it is easy to be damaged. 7-29
