owners manual Ford Edge

all ratings: 0 average rating: 5

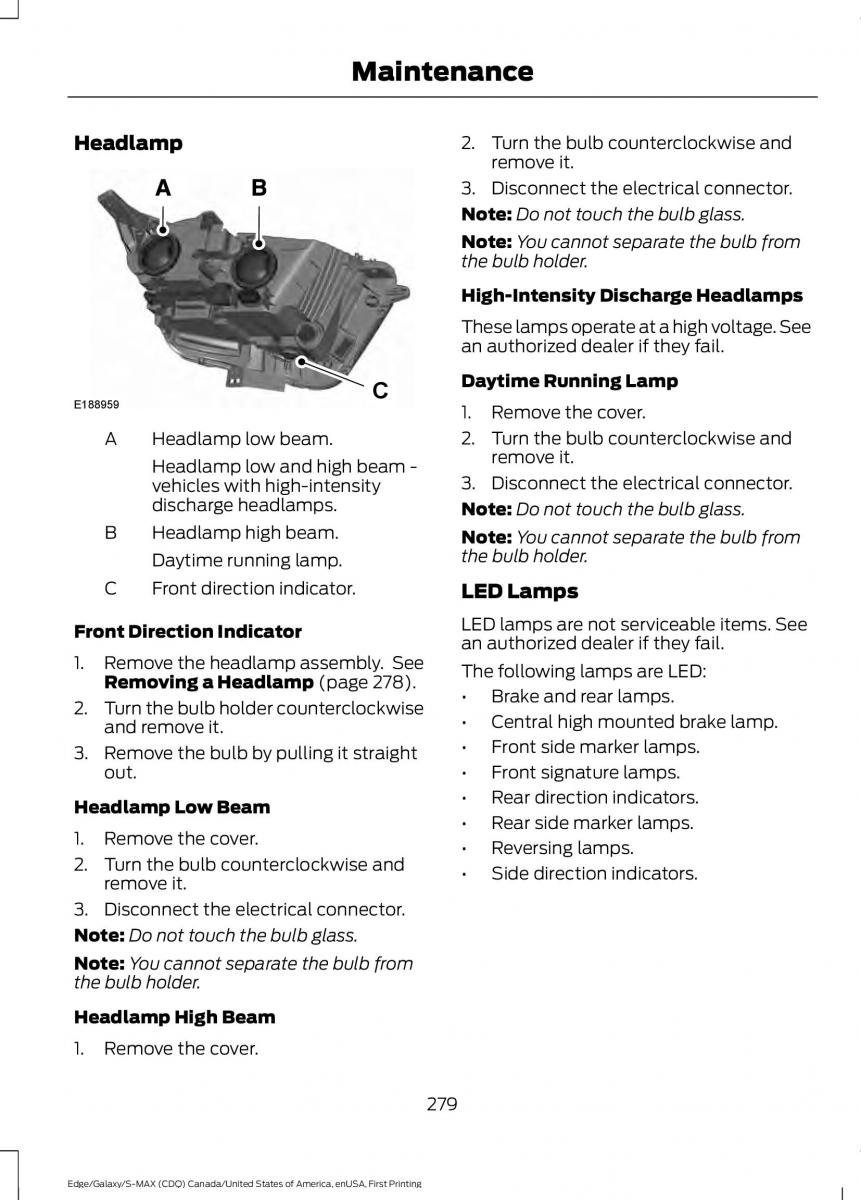

Maintenance Headlamp 2. Turn the bulb counterclockwise and remove it. 3. Disconnect the electrical connector. Note:Do not touch the bulb glass. Note:You cannot separate the bulb from the bulb holder. High-Intensity Discharge Headlamps These lamps operate at a high voltage. See an authorized dealer if they fail. Daytime Running Lamp C E188959 1. Remove the cover. A Headlamp low beam. 2. Turn the bulb counterclockwise and Headlamp low and high beam - remove it. vehicles with high-intensity 3. Disconnect the electrical connector. discharge headlamps. Note:Do not touch the bulb glass. B Headlamp high beam. Note:You cannot separate the bulb from Daytime running lamp. the bulb holder. C Front direction indicator. LED Lamps Front Direction Indicator LED lamps are not serviceable items. See an authorized dealer if they fail. 1. Remove the headlamp assembly. See The following lamps are LED: Removing a Headlamp (page 278). • Brake and rear lamps. 2. Turn the bulb holder counterclockwise • Central high mounted brake lamp. and remove it. 3. Remove the bulb by pulling it straight • Front side marker lamps. out. • Front signature lamps. Headlamp Low Beam • Rear direction indicators. 1. Remove the cover. • Rear side marker lamps. 2. Turn the bulb counterclockwise and • Reversing lamps. remove it. • Side direction indicators. 3. Disconnect the electrical connector. Note:Do not touch the bulb glass. Note:You cannot separate the bulb from the bulb holder. Headlamp High Beam 1. Remove the cover. 279 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
