owners manual Ford Edge

all ratings: 0 average rating: 5

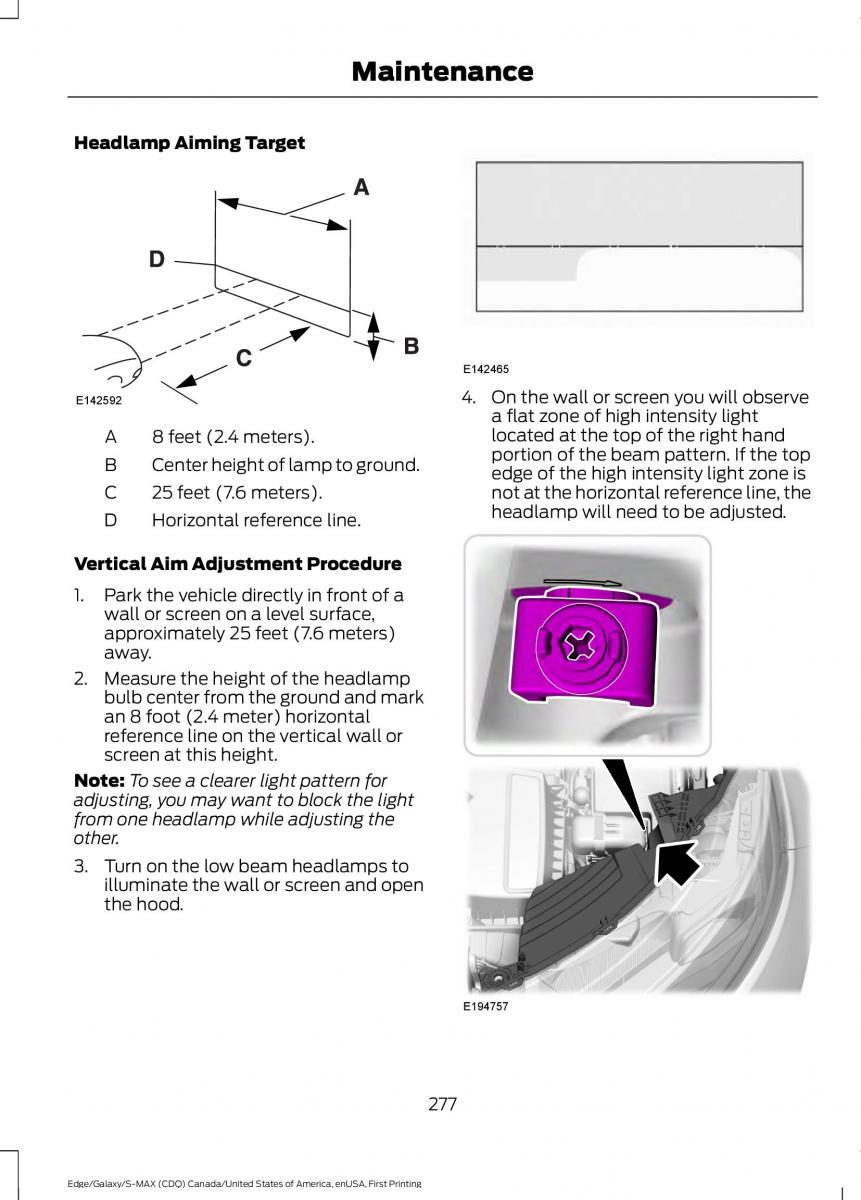

Maintenance Headlamp Aiming Target E142465 E142592 4. On the wall or screen you will observe a flat zone of high intensity light A 8 feet (2.4 meters). located at the top of the right hand B Center height of lamp to ground. portion of the beam pattern. If the top edge of the high intensity light zone is C 25 feet (7.6 meters). not at the horizontal reference line, the D Horizontal reference line. headlamp will need to be adjusted. Vertical Aim Adjustment Procedure 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height. Note:To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other. 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. E194757 277 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
