owners manual Audi S5

owners manual Audi S5 - year of production: 2007 - Audi S5 A5 owners manual EN

Document: pdf (11.95 MB) 294 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

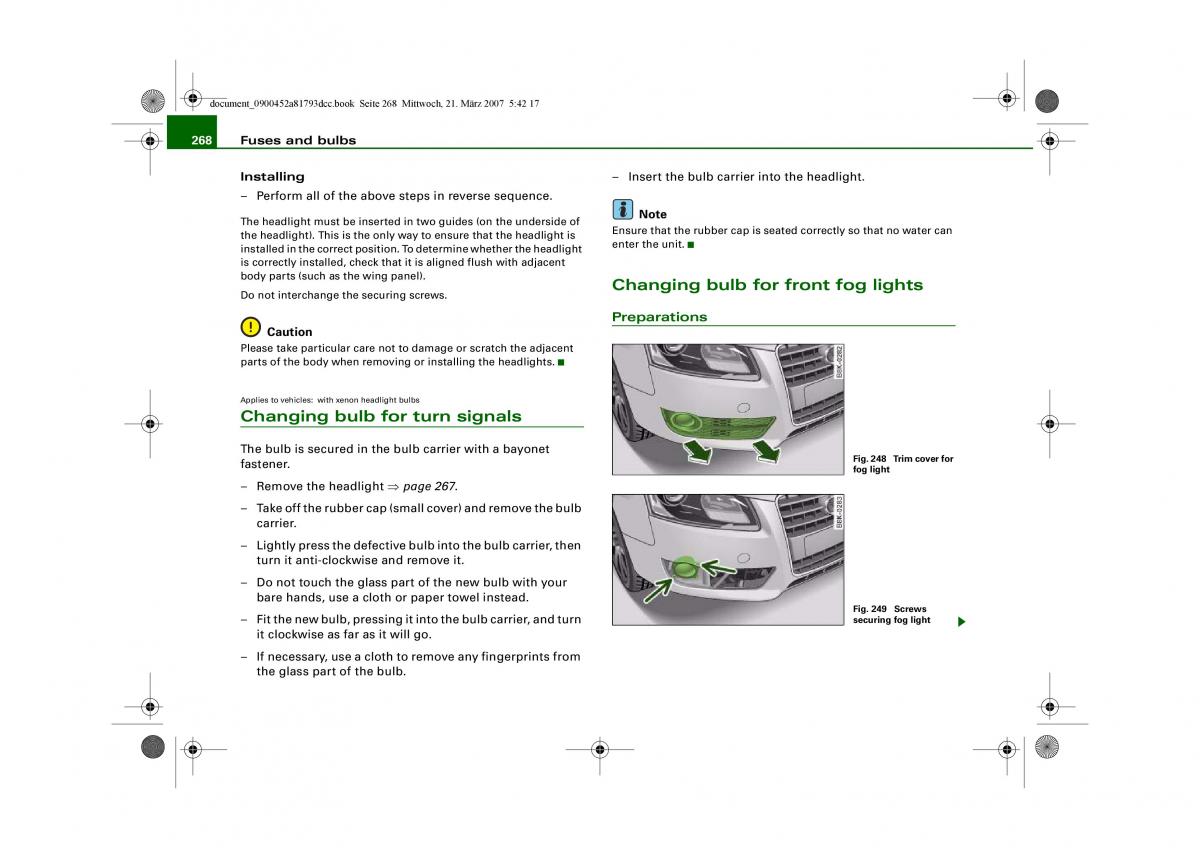

document_0900452a81793dcc.book Seite 268 Mittwoch, 21. März 2007 5:42 17 268 Fuses and bulbs Installing – Insert the bulb carrier into the headlight. – Perform all of the above steps in reverse sequence. The headlight must be inserted in two guides (on the underside of Note the headlight). This is the only way to ensure that the headlight is Ensure that the rubber cap is seated correctly so that no water can installed in the correct position. To determine whether the headlight enter the unit. is correctly installed, check that it is aligned flush with adjacent body parts (such as the wing panel). Changing bulb for front fog lights Do not interchange the securing screws. Preparations Caution Please take particular care not to damage or scratch the adjacent parts of the body when removing or installing the headlights. Applies to vehicles: with xenon headlight bulbs Changing bulb for turn signals The bulb is secured in the bulb carrier with a bayonet fastener. Fig. 248 Trim cover for fog light – Remove the headlight ⇒ page 267. – Take off the rubber cap (small cover) and remove the bulb carrier. – Lightly press the defective bulb into the bulb carrier, then turn it anti-clockwise and remove it. – Do not touch the glass part of the new bulb with your bare hands, use a cloth or paper towel instead. Fig. 249 Screws – Fit the new bulb, pressing it into the bulb carrier, and turn securing fog light it clockwise as far as it will go. – If necessary, use a cloth to remove any fingerprints from the glass part of the bulb.
