text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

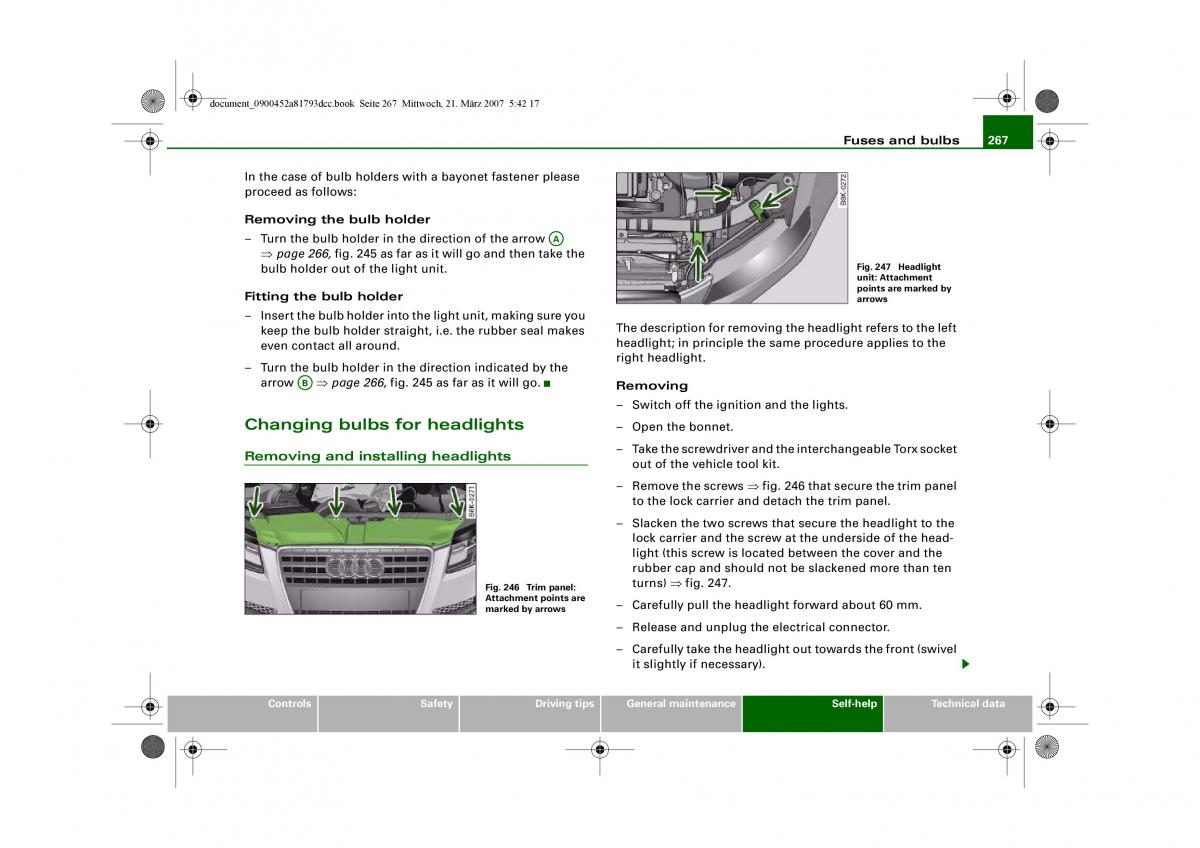

document_0900452a81793dcc.book Seite 267 Mittwoch, 21. März 2007 5:42 17 Fuses and bulbs 267 In the case of bulb holders with a bayonet fastener please proceed as follows: Removing the bulb holder – Turn the bulb holder in the direction of the arrow A A ⇒page266, fig. 245 as far as it will go and then take the bulb holder out of the light unit. Fig. 247 Headlight unit: Attachment Fitting the bulb holder points are marked by arrows – Insert the bulb holder into the light unit, making sure you keep the bulb holder straight, i.e. the rubber seal makes The description for removing the headlight refers to the left even contact all around. headlight; in principle the same procedure applies to the – Turn the bulb holder in the direction indicated by the right headlight. B arrow ⇒page266, fig.245 as far as it will go. A Removing – Switch off the ignition and the lights. Changing bulbs for headlights – Open the bonnet. Removing and installing headlights – Take the screwdriver and the interchangeable Torx socket out of the vehicle tool kit. – Remove the screws ⇒ fig. 246 that secure the trim panel to the lock carrier and detach the trim panel. – Slacken the two screws that secure the headlight to the lock carrier and the screw at the underside of the head- light (this screw is located between the cover and the rubber cap and should not be slackened more than ten Fig. 246 Trim panel: turns) ⇒ fig. 247. Attachment points are – Carefully pull the headlight forward about 60 mm. marked by arrows – Release and unplug the electrical connector. – Carefully take the headlight out towards the front (swivel it slightly if necessary). Controls Safety Driving tips General maintenance Self-help Technical data
