owners manual Ford Edge

all ratings: 0 average rating: 5

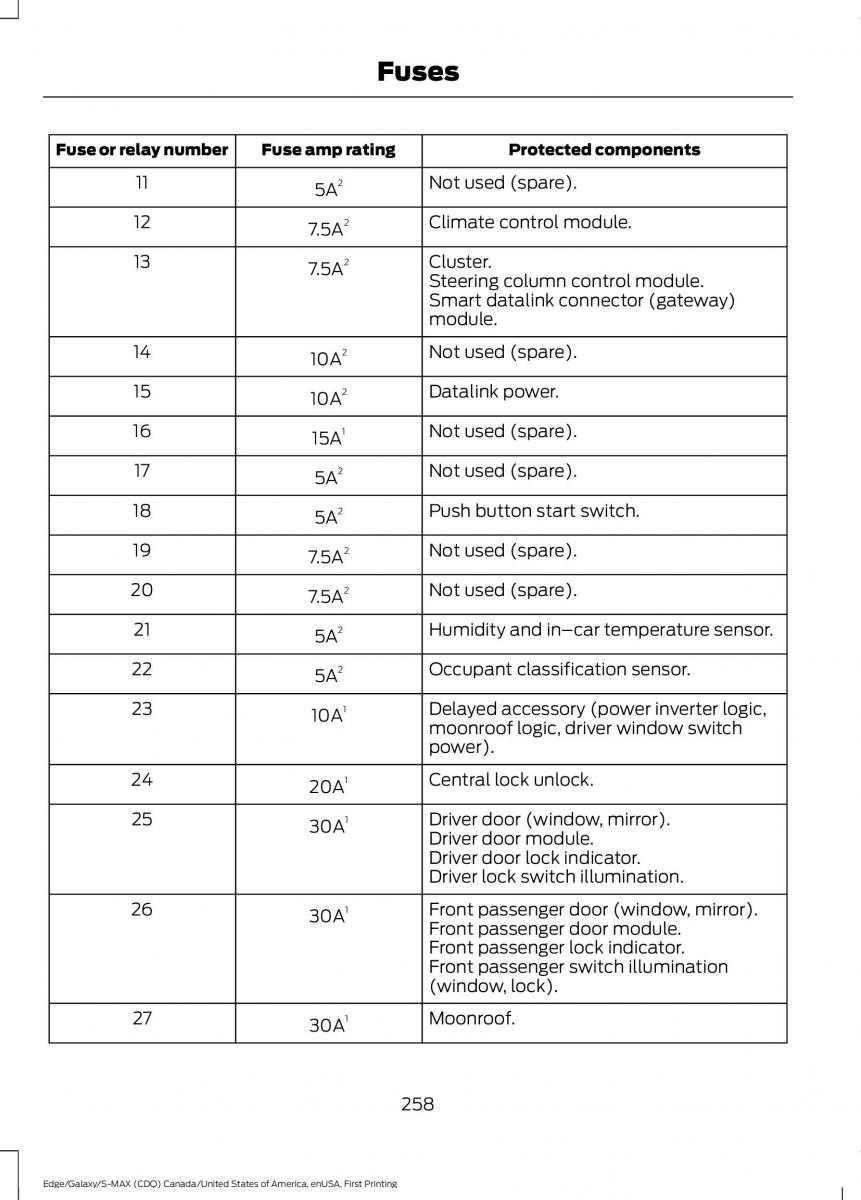

Fuses Fuse or relay number Fuse amp rating Protected components 11 2 Not used (spare). 5A 12 2 Climate control module. 7.5A 13 2 Cluster. 7.5A Steering column control module. Smart datalink connector (gateway) module. 14 10A2 Not used (spare). 15 10A2 Datalink power. 16 1 Not used (spare). 15A 17 2 Not used (spare). 5A 18 2 Push button start switch. 5A 19 2 Not used (spare). 7.5A 20 2 Not used (spare). 7.5A 21 2 Humidity and in–car temperature sensor. 5A 22 2 Occupant classification sensor. 5A 23 1 Delayed accessory (power inverter logic, 10A moonroof logic, driver window switch power). 24 20A1 Central lock unlock. 25 1 Driver door (window, mirror). 30A Driver door module. Driver door lock indicator. Driver lock switch illumination. 26 1 Front passenger door (window, mirror). 30A Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock). 27 1 Moonroof. 30A 258 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
