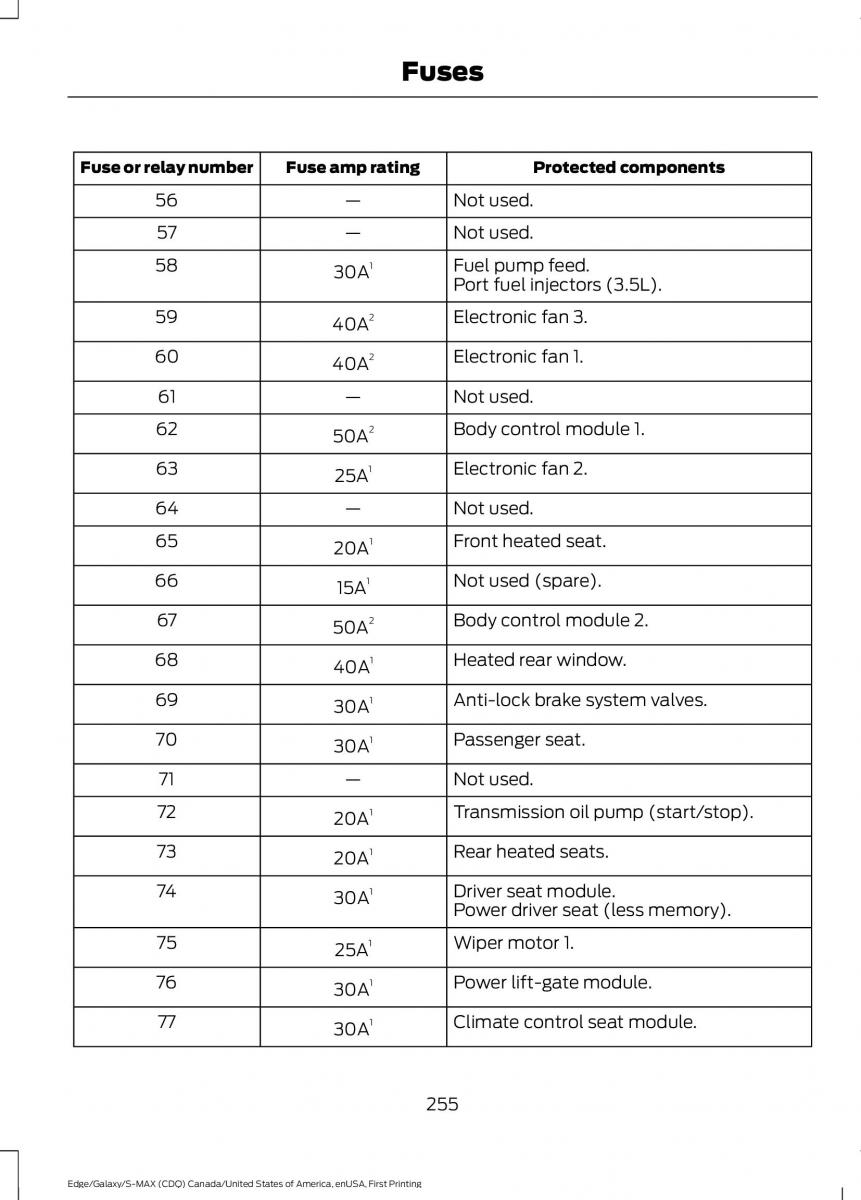

Fuses
Fuse or relay number Fuse amp rating Protected components
56 — Not used.
57 — Not used.
58 1 Fuel pump feed.
30A Port fuel injectors (3.5L).
59 2 Electronic fan 3.
40A
60 2 Electronic fan 1.
40A
61 — Not used.
62 2 Body control module 1.
50A
63 25A1 Electronic fan 2.
64 — Not used.
65 20A1 Front heated seat.
66 15A1 Not used (spare).
67 2 Body control module 2.
50A
68 40A1 Heated rear window.
69 1 Anti-lock brake system valves.
30A
70 1 Passenger seat.
30A
71 — Not used.
72 20A1 Transmission oil pump (start/stop).
73 20A1 Rear heated seats.
74 1 Driver seat module.
30A Power driver seat (less memory).
75 25A1 Wiper motor 1.
76 1 Power lift-gate module.
30A
77 1 Climate control seat module.
30A
255
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
