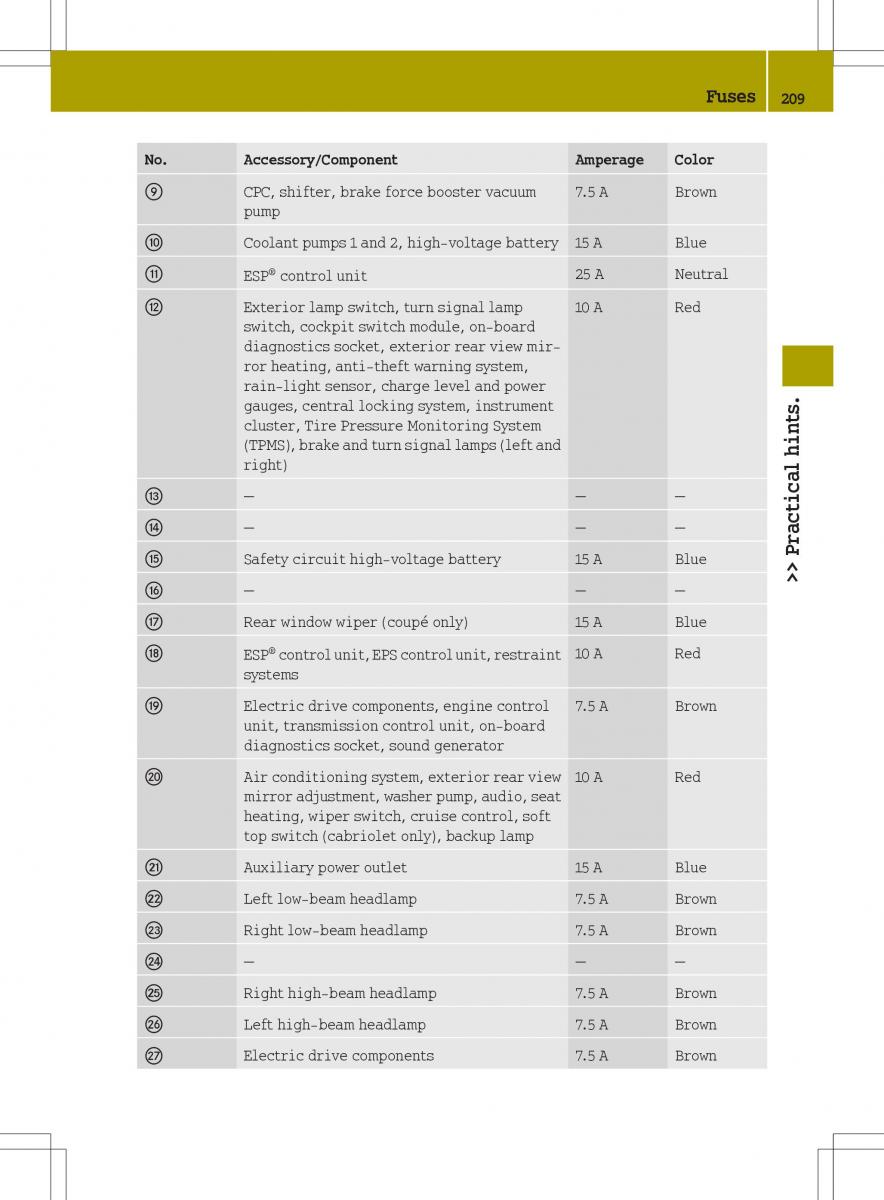

text version of content this owner's manual page
from owners manual to the vehicle Smart Fortwo, year of production 2008:
Fuses
209
No. Accessory/Component Amperage Color
E CPC, shifter, brake force booster vacuum7.5 A Brown
pump
F Coolant pumps 1 and 2, high-voltage battery15 A Blue
®
G 25 A Neutral
ESP control unit
H Exterior lamp switch, turn signal lamp10 A Red
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view mir-
ror heating, anti-theft warning system,
rain-light sensor, charge level and power
.
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS),brakeandturnsignallamps(leftand
hints
right)
I — — —
J — — —
Practical
K Safety circuit high-voltage battery 15 A Blue
>>
L — — —
M Rear window wiper (coupé only) 15 A Blue
®
N 10 A Red
ESP controlunit,EPScontrolunit,restraint
systems
O Electric drive components, engine control7.5 A Brown
unit, transmission control unit, on-board
diagnostics socket, sound generator
P Air conditioning system, exterior rear view 10 ARed
mirroradjustment,washerpump,audio,seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only), backup lamp
Q Auxiliary power outlet 15 A Blue
R Left lowɓbeam headlamp 7.5 A Brown
S Right lowɓbeam headlamp 7.5 A Brown
T — — —
U Right highɓbeam headlamp 7.5 A Brown
V Left highɓbeam headlamp 7.5 A Brown
W Electric drive components 7.5 A Brown
