text version of content this owner's manual page from owners manual to the vehicle Volvo 242, year of production 1974 - 1993:

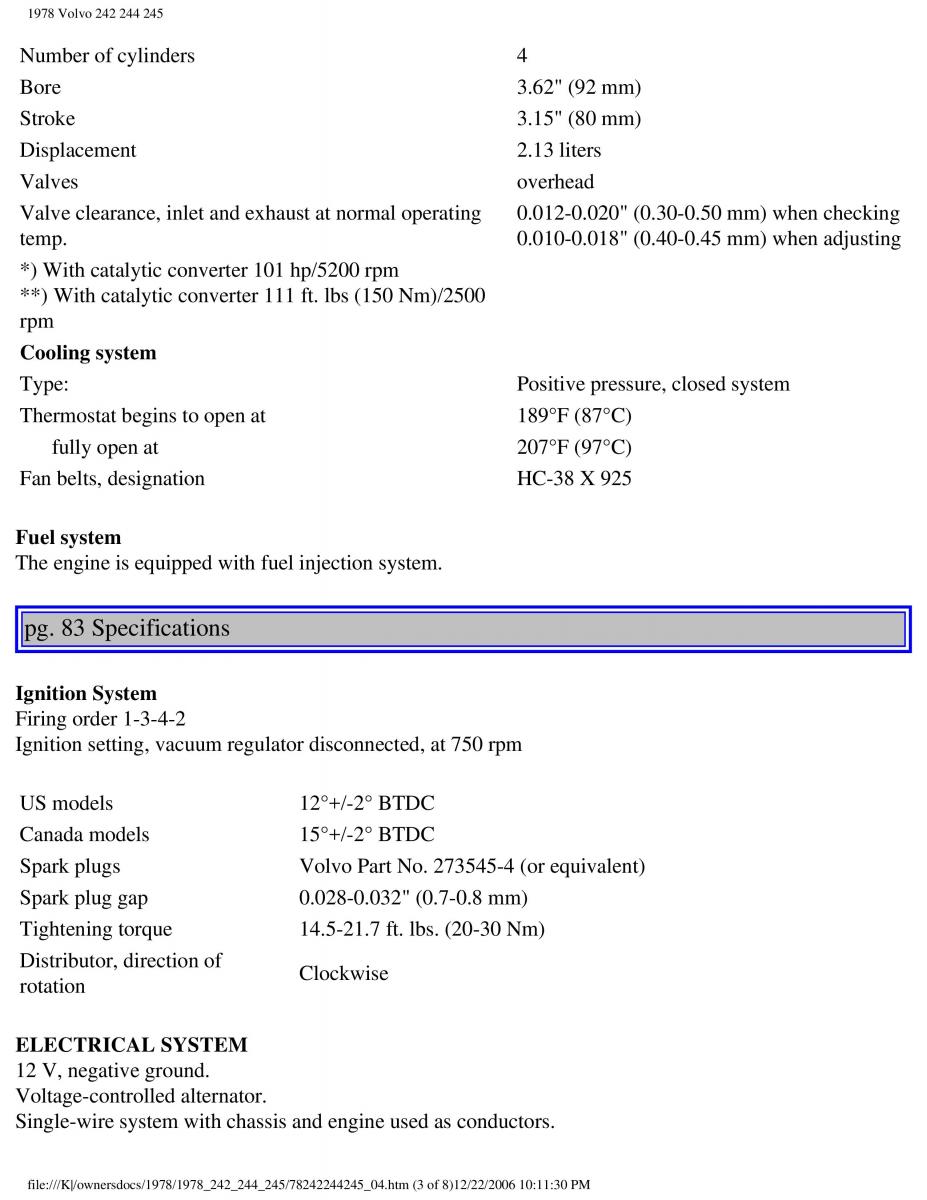

1978 Volvo 242 244 245 Number of cylinders 4 Bore 3.62" (92 mm) Stroke 3.15" (80 mm) Displacement 2.13 liters Valves overhead Valve clearance, inlet and exhaust at normal operating 0.012-0.020" (0.30-0.50 mm) when checking temp. 0.010-0.018" (0.40-0.45 mm) when adjusting *) With catalytic converter 101 hp/5200 rpm **) With catalytic converter 111 ft. lbs (150 Nm)/2500 rpm Cooling system Type: Positive pressure, closed system Thermostat begins to open at 189°F (87°C) fully open at 207°F (97°C) Fan belts, designation HC-38 X 925 Fuel system The engine is equipped with fuel injection system. pg. 83 Specifications Ignition System Firing order 1-3-4-2 Ignition setting, vacuum regulator disconnected, at 750 rpm US models 12°+/-2° BTDC Canada models 15°+/-2° BTDC Spark plugs Volvo Part No. 273545-4 (or equivalent) Spark plug gap 0.028-0.032" (0.7-0.8 mm) Tightening torque 14.5-21.7 ft. lbs. (20-30 Nm) Distributor, direction of Clockwise rotation ELECTRICAL SYSTEM 12 V, negative ground. Voltage-controlled alternator. Single-wire system with chassis and engine used as conductors. file:///K|/ownersdocs/1978/1978_242_244_245/78242244245_04.htm (3 of 8)12/22/2006 10:11:30 PM
