text version of content this owner's manual page from owners manual to the vehicle Volvo S90, year of production 1990 - 1998:

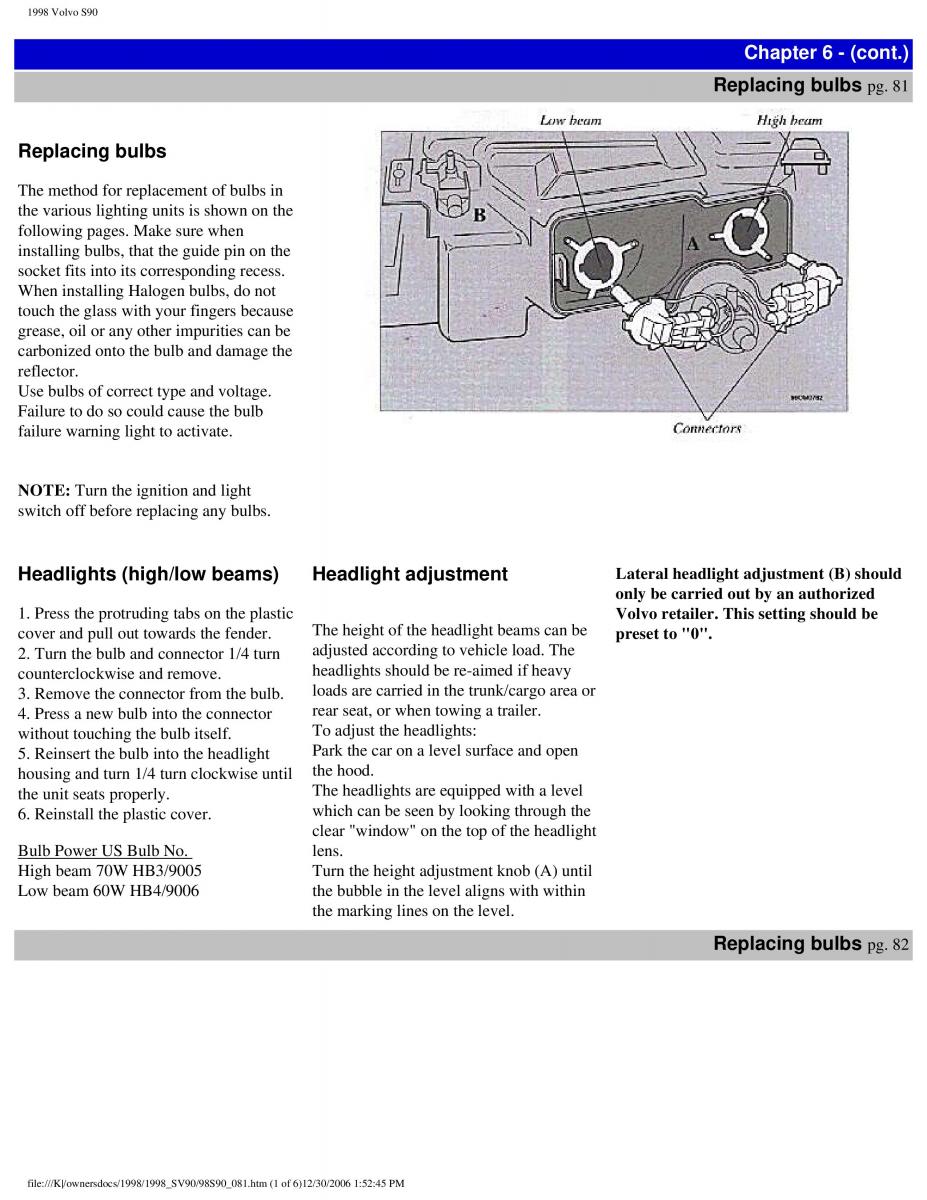

1998 Volvo S90 Chapter 6 - (cont.) Replacing bulbs pg. 81 Replacing bulbs The method for replacement of bulbs in the various lighting units is shown on the following pages. Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess. When installing Halogen bulbs, do not touch the glass with your fingers because grease, oil or any other impurities can be carbonized onto the bulb and damage the reflector. Use bulbs of correct type and voltage. Failure to do so could cause the bulb failure warning light to activate. NOTE: Turn the ignition and light switch off before replacing any bulbs. Headlights (high/low beams) Headlight adjustment Lateral headlight adjustment (B) should only be carried out by an authorized 1. Press the protruding tabs on the plastic Volvo retailer. This setting should be cover and pull out towards the fender. The height of the headlight beams can be preset to "0". 2. Turn the bulb and connector 1/4 turn adjusted according to vehicle load. The counterclockwise and remove. headlights should be re-aimed if heavy 3. Remove the connector from the bulb. loads are carried in the trunk/cargo area or 4. Press a new bulb into the connector rear seat, or when towing a trailer. without touching the bulb itself. To adjust the headlights: 5. Reinsert the bulb into the headlight Park the car on a level surface and open housing and turn 1/4 turn clockwise until the hood. the unit seats properly. The headlights are equipped with a level 6. Reinstall the plastic cover. which can be seen by looking through the clear "window" on the top of the headlight Bulb Power US Bulb No. lens. High beam 70W HB3/9005 Turn the height adjustment knob (A) until Low beam 60W HB4/9006 the bubble in the level aligns with within the marking lines on the level. Replacing bulbs pg. 82 file:///K|/ownersdocs/1998/1998_SV90/98S90_081.htm (1 of 6)12/30/2006 1:52:45 PM
