text version of content this owner's manual page from owners manual to the vehicle Porsche Cayenne S, year of production 2002 - 2010:

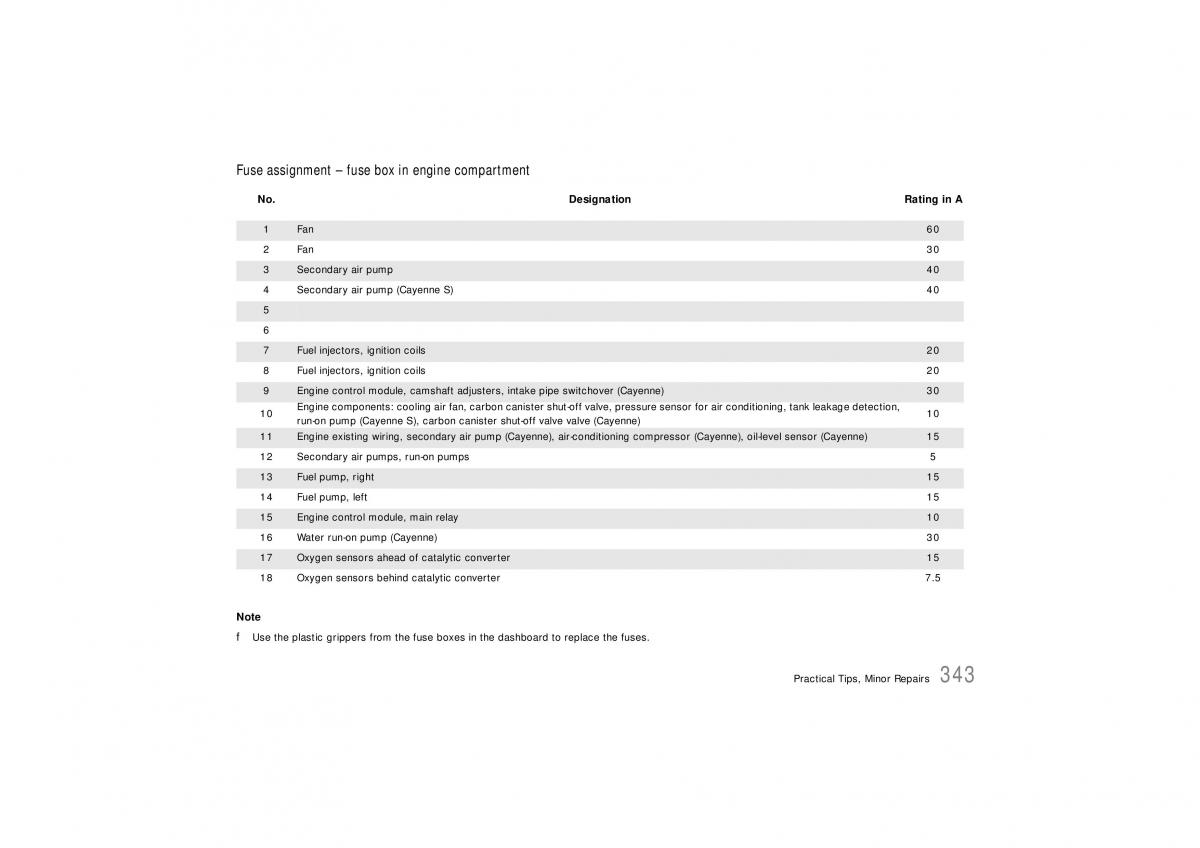

Fuse assignment – fuse box in engine compartment No. Designation Rating in A 1 Fan 60 2Fan 30 3 Secondary air pump 40 4 Secondary air pump (Cayenne S) 40 5 6 7 Fuel injectors, ignition coils 20 8 Fuel injectors, ignition coils 20 9 Engine control module, camshaft adjusters, intake pipe switchover (Cayenne)30 10 Engine components: cooling air fan, carbon canister shut-off valve, pressure sensor for air conditioning, tank leakage detectio n, 10 run-on pump (Cayenne S), carbon canister shut-off valve valve (Cayenne) 11 Engine existing wiring, secondary air pump (Cayenne), air-conditioning compressor (Cayenne), oil-level sensor (Cayenne)15 12 Secondary air pumps, run-on pumps 5 13 Fuel pump, right 15 14 Fuel pump, left 15 15 Engine control module, main relay 10 16 Water run-on pump (Cayenne) 30 17 Oxygen sensors ahead of catalytic converter 15 18 Oxygen sensors behind catalytic converter 7.5 Note f Use the plastic grippers from the fuse boxes in the dashboard to replace the fuses. Practical Tips, Minor Repairs 343
