text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

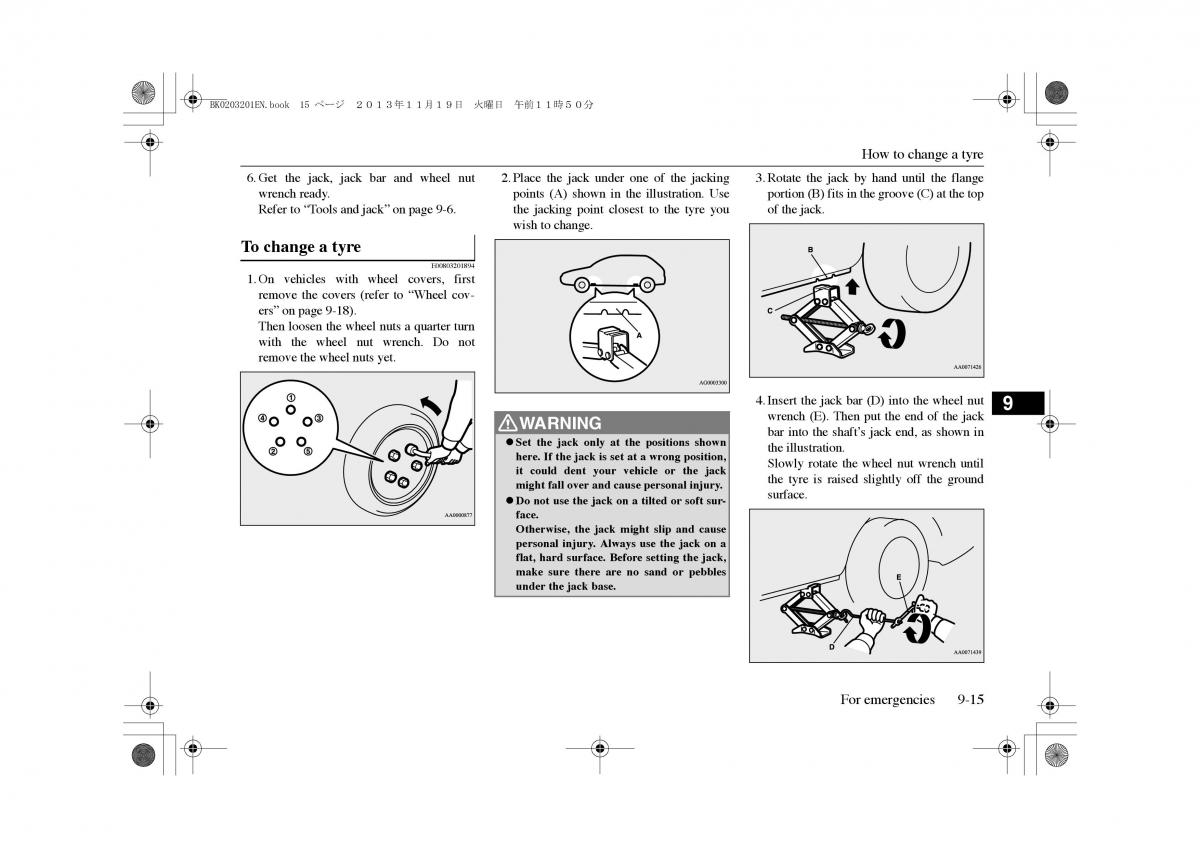

B０0203201E３.book 15 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 How to change a tyre 6.Get the jack, jack bar and wheel nut 2.Place the jack under one of the jacking 3.Rotate the jack by hand until the flange wrench ready. points (A) shown in the illustration. Use portion (B) fits in the groove (C) at the top Refer to “Tools and jack” on page 9-6. the jacking point closest to the tyre you of the jack. wish to change. To change a tyre E00803201894 1.On vehicles with wheel covers, first remove the covers (refer to “Wheel cov- ers” on page 9-18). Then loosen the wheel nuts a quarter turn with the wheel nut wrench. Do not remove the wheel nuts yet. 4.Insert the jack bar (D) into the wheel nut 9 WARNING wrench (E). Then put the end of the jack zSet the jack only at the positions shown bar into the shaft’s jack end, as shown in here. If the jack is set at a wrong position, the illustration. it could dent your vehicle or the jack Slowly rotate the wheel nut wrench until might fall over and cause personal injury. the tyre is raised slightly off the ground zDo not use the jack on a tilted or soft sur- surface. face. Otherwise, the jack might slip and cause personal injury. Always use the jack on a flat, hard surface. Before setting the jack, make sure there are no sand or pebbles under the jack base. For emergencies 9-15
