text version of content this owner's manual page from owners manual to the vehicle Toyota 4Runner, year of production 2003 - 2009:

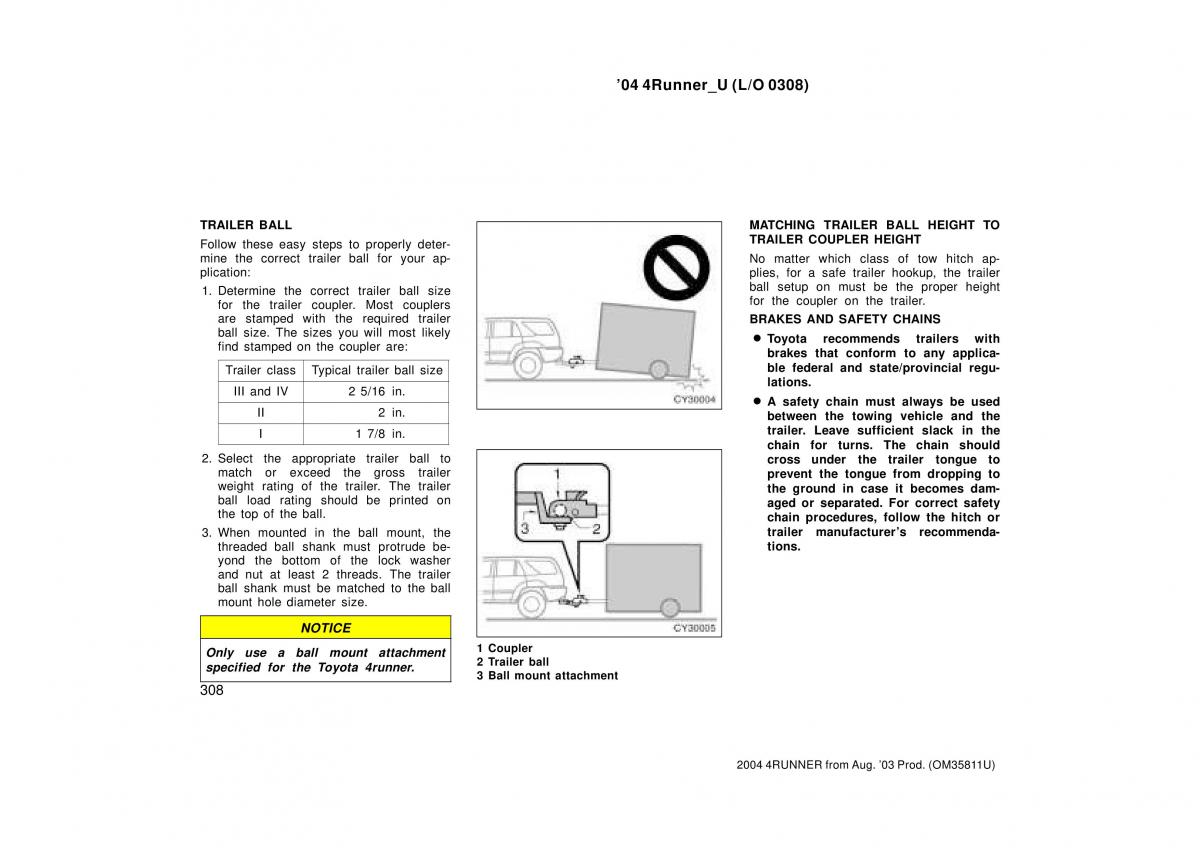

’04 4Runner_U (L/O 0308) TRAILER BALL MATCHING TRAILER BALL HEIGHT TO Follow these easy steps to properly deter- TRAILER COUPLER HEIGHT mine the correct trailer ball for your ap- No matter which class of tow hitch ap- plication: plies, for a safe trailer hookup, the trailer 1. Determine the correct trailer ball size ball setup on must be the proper height for the trailer coupler. Most couplers for the coupler on the trailer. are stamped with the required trailer BRAKES AND SAFETY CHAINS ball size. The sizes you will most likely Toyota recommends trailers with find stamped on the coupler are: brakes that conform to any applica- Trailer classTypical trailer ball size ble federal and state/provincial regu- III and IV 2 5/16 in. lations. II 2in. A safety chain must always be used between the towing vehicle and the I 1 7/8 in. trailer. Leave sufficient slack in the chain for turns. The chain should 2. Select the appropriate trailer ball to cross under the trailer tongue to match or exceed the gross trailer prevent the tongue from dropping to weight rating of the trailer. The trailer the ground in case it becomes dam- ball load rating should be printed on aged or separated. For correct safety the top of the ball. chain procedures, follow the hitch or 3. When mounted in the ball mount, the trailer manufacturer’s recommenda- threaded ball shank must protrude be- tions. yond the bottom of the lock washer and nut at least 2 threads. The trailer ball shank must be matched to the ball mount hole diameter size. NOTICE Only use a ball mount attachment1 Coupler specified for the Toyota 4runner.2 Trailer ball 3 Ball mount attachment 308 2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
