text version of content this owner's manual page from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

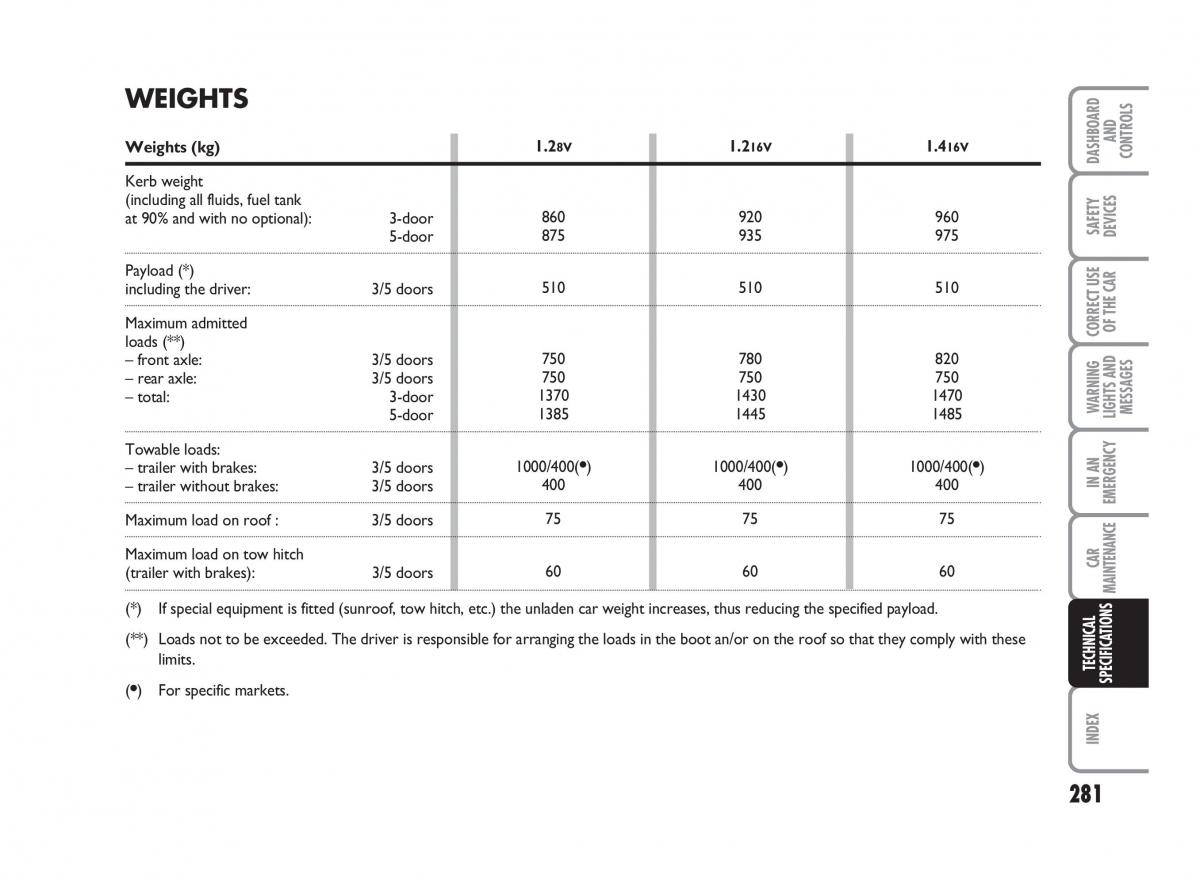

WEIGHTS
Weights (kg) 1.28V 1.216V 1.416V AND
DASHBOARDCONTROLS
Kerb weight
(including all fluids, fuel tank
at 90% and with no optional): 3-door 860 920 960
5-door 875 935 975 SAFETYDEVICES
Payload (*)
including the driver: 3/5 doors 510 510 510
Maximum admitted CORRECT USEOF THE CAR
loads (**)
– front axle: 3/5 doors 750 780 820
– rear axle: 3/5 doors 750 750 750
– total: 3-door 1370 1430 1470 ARNING
5-door 1385 1445 1485 W LIGHTS ANDMESSAGES
Towable loads:
1000/400(● 1000/400(● 1000/400(●
– trailer with brakes: 3/5 doors ) ) ) IN AN
– trailer without brakes: 3/5 doors 400 400 400 EMERGENCY
Maximum load on roof : 3/5 doors 75 75 75
Maximum load on tow hitch CAR
(trailer with brakes): 3/5 doors 60 60 60
MAINTENANCE
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so that they comply with these TIONS
limits. TECHNICAL
SPECIFICA
●
( ) For specific markets.
INDEX
281
