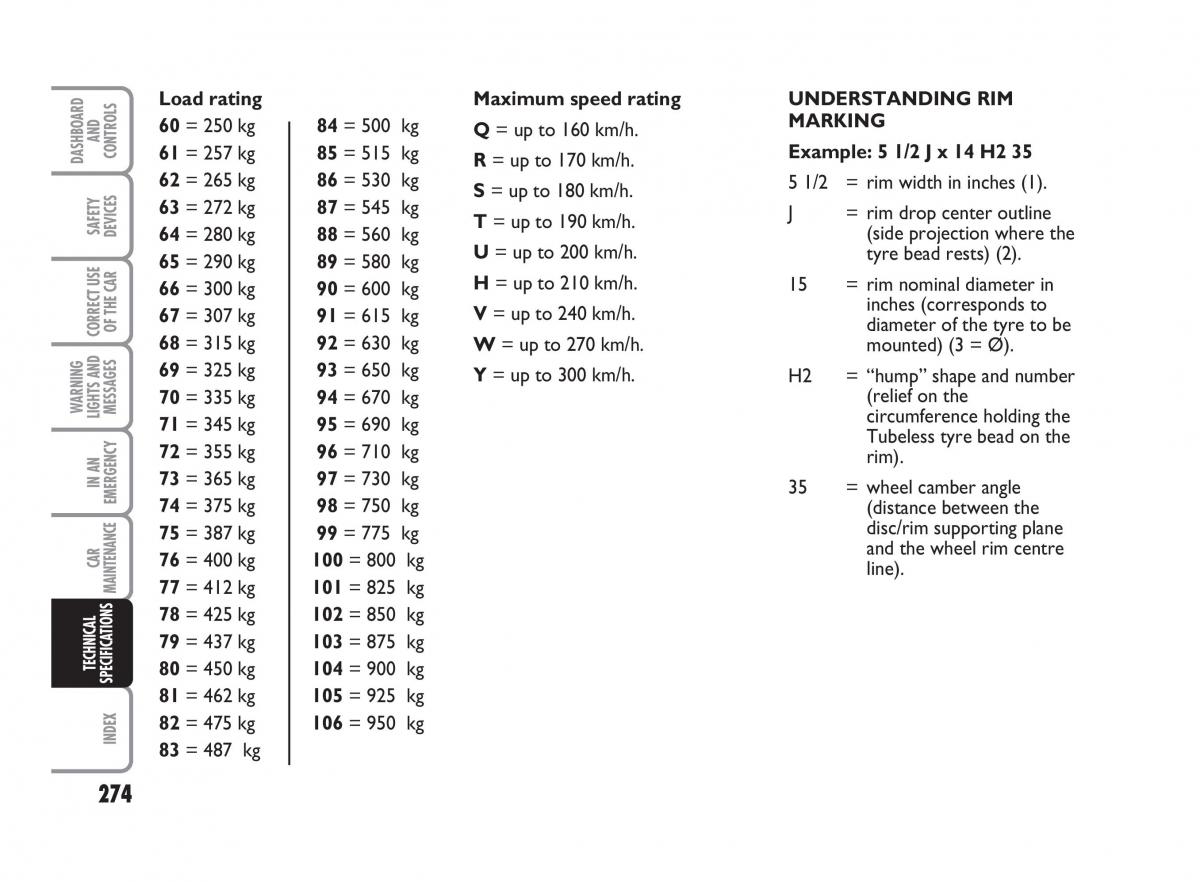

text version of content this owner's manual page from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:
Load rating Maximum speed rating UNDERSTANDING RIM
AND 60 = 250 kg 84 = 500 kg Q= up to 160 km/h. MARKING
DASHBOARDCONTROLS61 = 257 kg 85 = 515 kgR= up to 170 km/h.Example: 5 1/2 J x 14 H2 35
62 = 265 kg 86 = 530 kg S= up to 180 km/h. 5 1/2= rim width in inches (1).
63 = 272 kg 87 = 545 kg T= up to 190 km/h. J = rim drop center outline
SAFETYDEVICES64 = 280 kg 88 = 560 kg (side projection where the
65 = 290 kg 89 = 580 kg U= up to 200 km/h. tyre bead rests) (2).
66 = 300 kg 90 = 600 kg H= up to 210 km/h. 15 = rim nominal diameter in
67 = 307 kg 91 = 615 kg V= up to 240 km/h. inches (corresponds to
CORRECT USEOF THE CAR diameter of the tyre to be
68 = 315 kg 92 = 630 kg W= up to 270 km/h. mounted) (3 = Ø).
69 = 325 kg 93 = 650 kg Y= up to 300 km/h. H2 = “hump” shape and number
ARNING70 = 335 kg 94 = 670 kg (relief on the
WLIGHTS ANDMESSAGES circumference holding the
71 = 345 kg 95 = 690 kg Tubeless tyre bead on the
72 = 355 kg 96 = 710 kg rim).
IN AN73 = 365 kg 97 = 730 kg 35 = wheel camber angle
EMERGENCY74 = 375 kg 98 = 750 kg (distance between the
75 = 387 kg 99 = 775 kg disc/rim supporting plane
CAR 76 = 400 kg 100 = 800 kg and the wheel rim centre
line).
MAINTENANCE77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
TIONS79 = 437 kg 103 = 875 kg
TECHNICALSPECIFICA80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
INDEX82 = 475 kg 106 = 950 kg
83 = 487 kg
274
