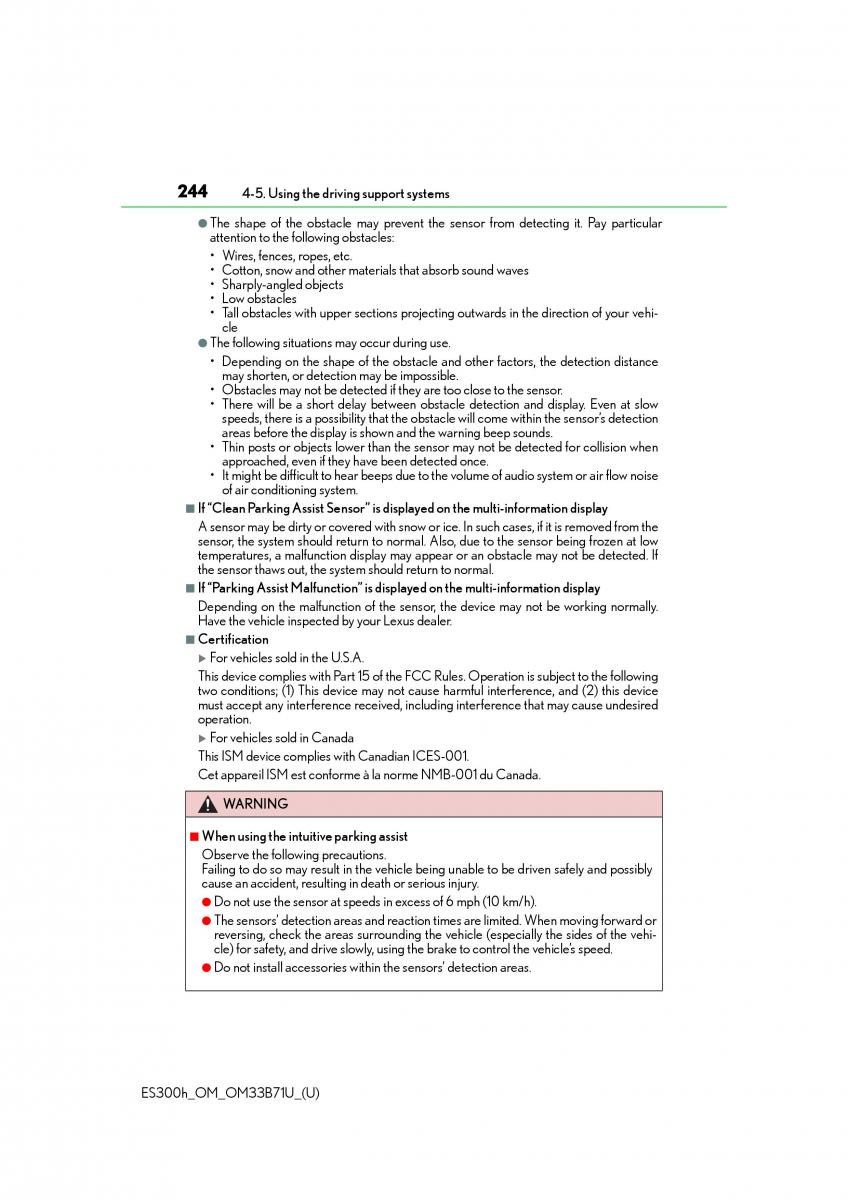

244 4-5. Using the driving support systems ●The shape of the obstacle may prevent the sensor from detecting it. Pay particular attention to the following obstacles: • Wires, fences, ropes, etc. • Cotton, snow and other materials that absorb sound waves • Sharply-angled objects •Low obstacles • Tall obstacles with upper sections pr oojectingutwards in the direction of your vehi- cle ●The following situations may occur during use. • Depending on the shape of the obstacle and other factors, the detection distance may shorten, or detection may be impossible. • Obstacles may not be detected if they are too close to the sensor. • There will be a short delay betwacle detecteen obst ion and display. Even at slow speeds, there is a possibility that the obstacle will come within the sensor’s detection areas before the display is shown and the warning beep sounds. • Thin posts or objects lothan the sensor may not bewer detected for collision when approached, even if they have been detected once. • It might be difficult to hear beeps due to the volume of audio system or air flow noise of air conditioning system. ■If “Clean Parking Assist Sensor” is displayed on the multi-information display A sensor may be dirty or covered with snow or ice. In such cases, if it is removed from the sensor, the system should rern tu to normal. Also, due to the sensor being frozen at low temperatures, a malfunction display may appear or an obstacle may not be detected. If the sensor thaws out, the system should return to normal. ■If “Parking Assist Malfunction” is displayed on the multi-information display Depending on the malfunction of the sensor, the device may not be working normally. Have the vehicle inspected by your Lexus dealer. ■Certification For vehicles sold in the U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For vehicles sold in Canada This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. WARNING ■When using the intuitive parking assist Observe the following precautions. Failing to do so may result in the vehicle being unable to be driven safely and possibly cause an accident, resulting in death or serious injury. ●Do not use the sensor at speeds in excess of 6 mph (10 km/h). ●The sensors’ detection areas and reaction times are limited. When moving forward or reversing, check the areas surrounding the vehicle (especially the sides of the vehi- cle) for safety, and drive slowly, using the brake to control the vehicle’s speed. ●Do not install accessories within the sensors’ detection areas. ES300h_OM_OM33B71U_(U)
