text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

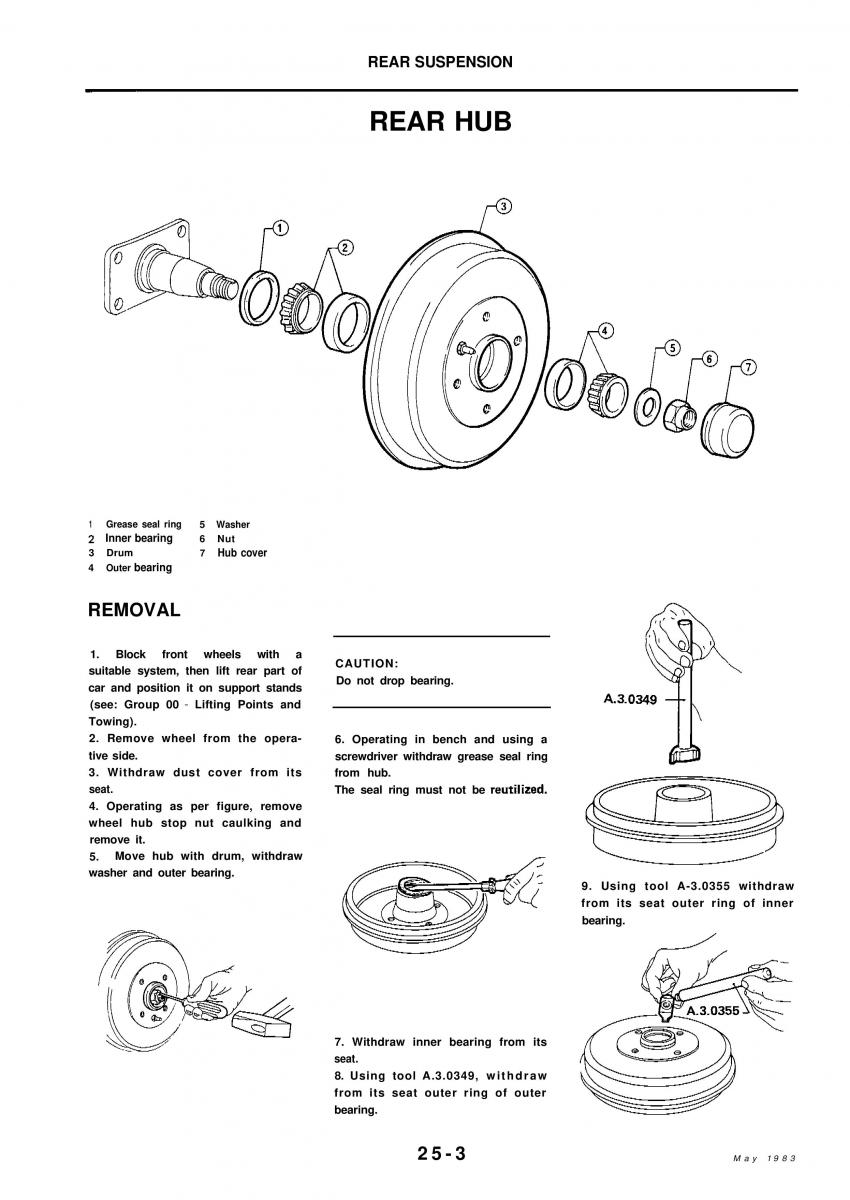

REAR SUSPENSION -. REAR HUB 1 Grease seal ring 5 Washer 2 Inner bearing 6 Nut 3 Drum 7 Hub cover 4 Outer bearing REMOVAL 1. Block front wheels with a CAUTION: suitable system, then lift rear part of Do not drop bearing. car and position it on support stands (see: Group 00- Lifting Points and Towing). 2. Remove wheel from the opera- 6. Operating in bench and using a tive side. screwdriver withdraw grease seal ring 3. Withdraw dust cover from its from hub. seat. The seal ring must not bereutilited. 4. Operating as per figure, remove wheel hub stop nut caulking and remove it. 5. Move hub with drum, withdraw washer and outer bearing. 9. Using tool A-3.0355 withdraw from its seat outer ring of inner bearing. 7. Withdraw inner bearing from its seat. 8. Using toolA.3.0349, withdraw from its seat outer ring of outer bearing. 25-3 May 1983
