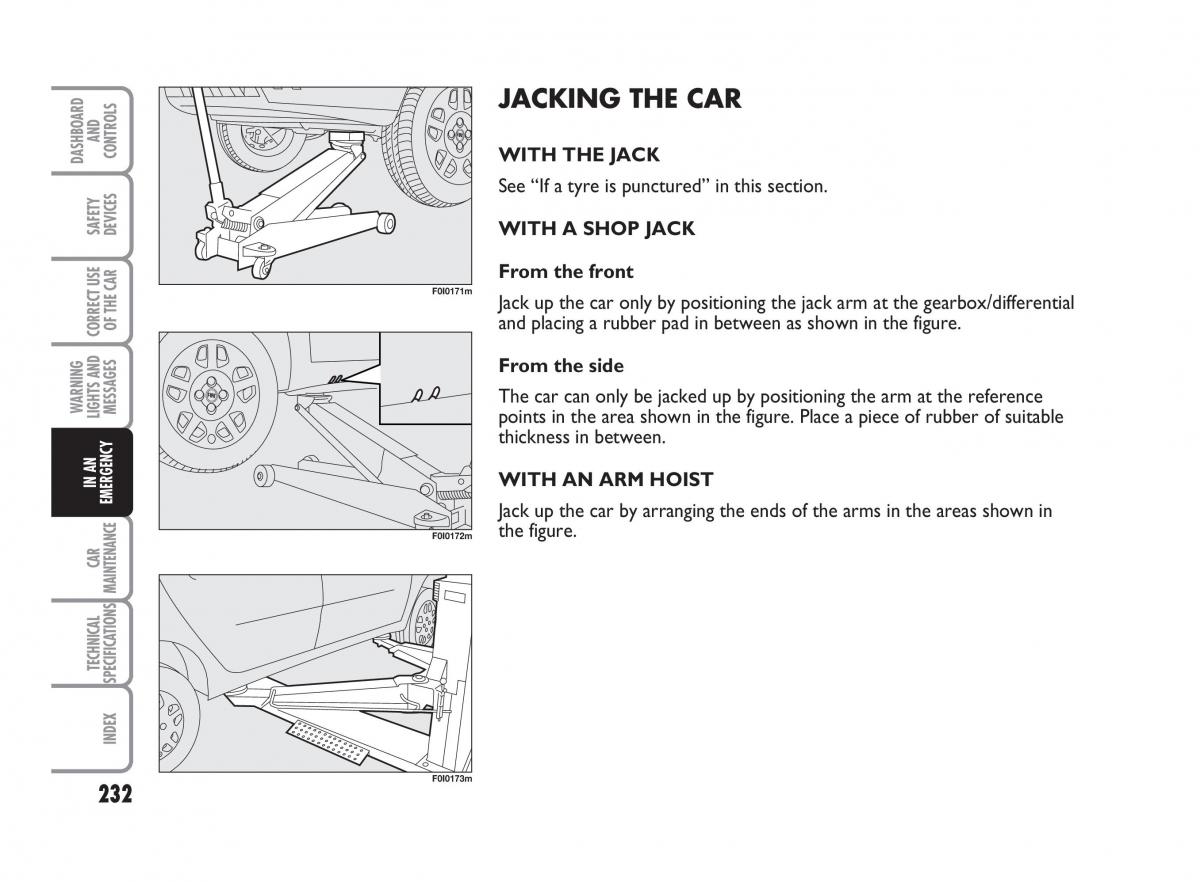

JACKING THE CAR
AND
DASHBOARDCONTROLS WITH THE JACK
See “If a tyre is punctured” in this section.
SAFETYDEVICES WITH A SHOP JACK
From the front
F0I0171m Jack up the car only by positioning the jack arm at the gearbox/differential
CORRECT USEOF THE CAR and placing a rubber pad in between as shown in the figure.
From the side
ARNING The car can only be jacked up by positioning the arm at the reference
W LIGHTS ANDMESSAGES points in the area shown in the figure. Place a piece of rubber of suitable
thickness in between.
IN AN WITH AN ARM HOIST
EMERGENCY Jack up the car by arranging the ends of the arms in the areas shown in
F0I0172m the figure.
CAR
MAINTENANCE
TIONS
TECHNICALSPECIFICA
INDEX
F0I0173m
232
