Maintenance
Poor wiper quality can be improved by 2. Measure the height from the center of
cleaning the wiper blades and the your headlamp (indicated by a 3.0
windshield. See Cleaning the Windows millimeter circle on the lens) to the
and Wiper Blades (page 230). ground and mark an 8 foot (2.4 meter)
horizontal reference line on the vertical

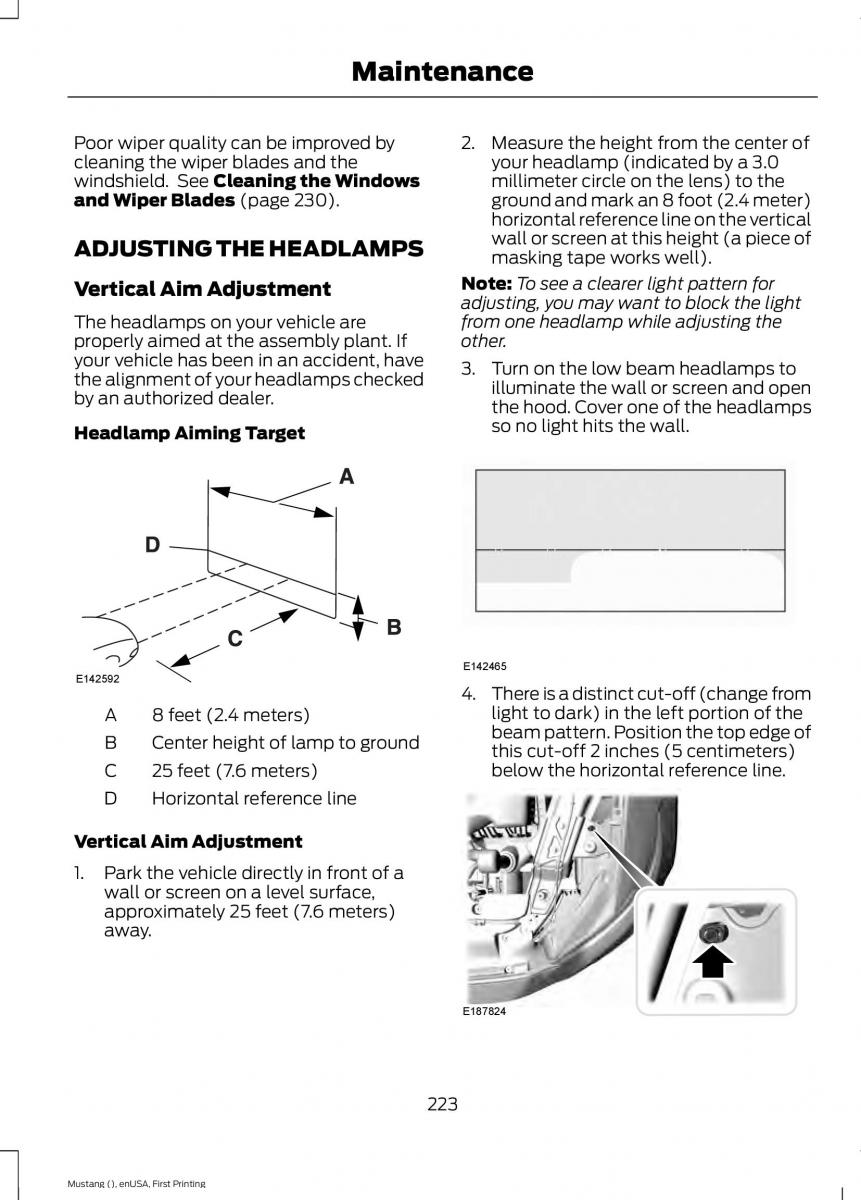

ADJUSTING THE HEADLAMPS wall or screen at this height (a piece of
masking tape works well).
Vertical Aim Adjustment Note:To see a clearer light pattern for
adjusting, you may want to block the light
The headlamps on your vehicle are from one headlamp while adjusting the
properly aimed at the assembly plant. If other.
your vehicle has been in an accident, have 3. Turn on the low beam headlamps to
the alignment of your headlamps checked illuminate the wall or screen and open
by an authorized dealer. the hood. Cover one of the headlamps
Headlamp Aiming Target so no light hits the wall.
E142465
E142592 4. There is a distinct cut-off (change from
A 8 feet (2.4 meters) light to dark) in the left portion of the
B Center height of lamp to ground beam pattern. Position the top edge of
this cut-off 2 inches (5 centimeters)
C 25 feet (7.6 meters) below the horizontal reference line.
D Horizontal reference line
Vertical Aim Adjustment
1. Park the vehicle directly in front of a
wall or screen on a level surface,
approximately 25 feet (7.6 meters)
away.
E187824
223
Mustang (), enUSA, First Printing
