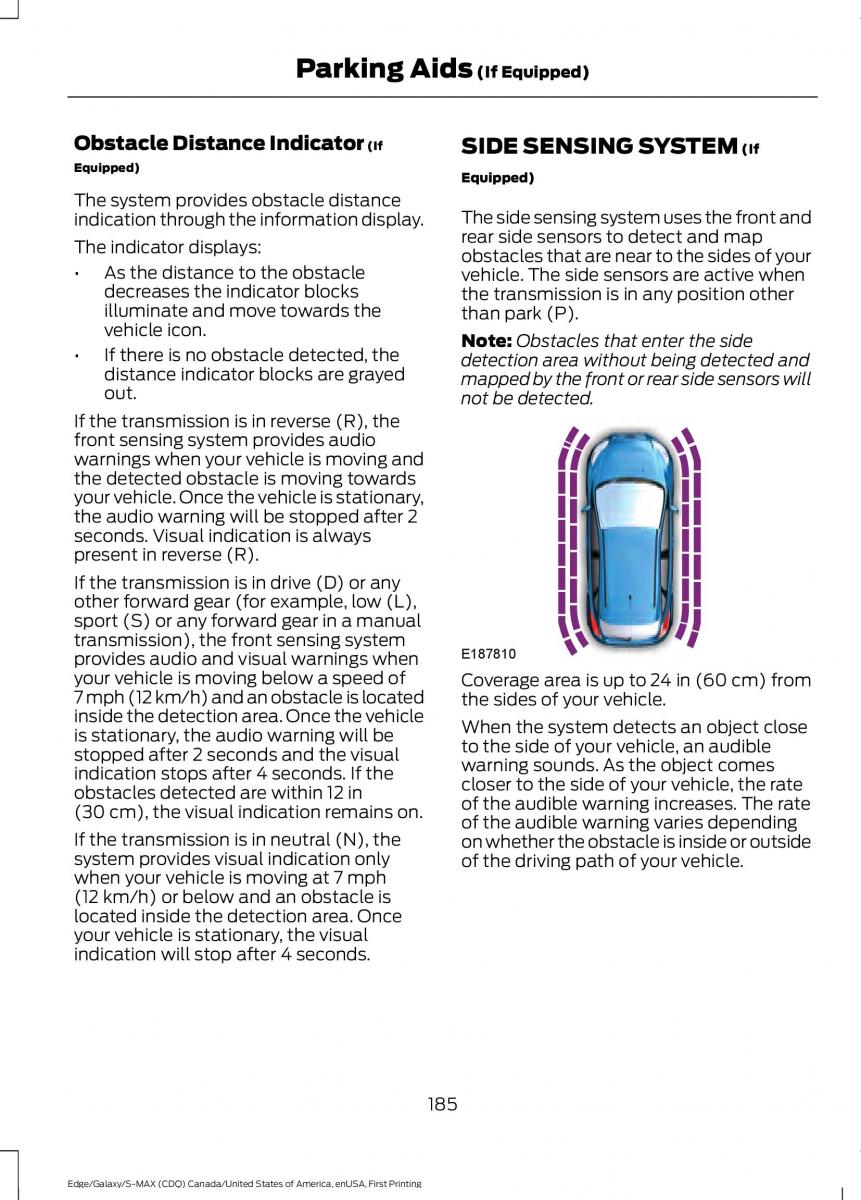

Parking Aids (If Equipped) Obstacle Distance Indicator (If SIDE SENSING SYSTEM (If Equipped) Equipped) The system provides obstacle distance The side sensing system uses the front and indication through the information display. rear side sensors to detect and map The indicator displays: obstacles that are near to the sides of your • As the distance to the obstacle vehicle. The side sensors are active when decreases the indicator blocks the transmission is in any position other illuminate and move towards the than park (P). vehicle icon. Note:Obstacles that enter the side • If there is no obstacle detected, the detection area without being detected and distance indicator blocks are grayed mapped by the front or rear side sensors will out. not be detected. If the transmission is in reverse (R), the front sensing system provides audio warnings when your vehicle is moving and the detected obstacle is moving towards your vehicle. Once the vehicle is stationary, the audio warning will be stopped after 2 seconds. Visual indication is always present in reverse (R). If the transmission is in drive (D) or any other forward gear (for example, low (L), sport (S) or any forward gear in a manual transmission), the front sensing system provides audio and visual warnings when E187810 your vehicle is moving below a speed of Coverage area is up to 24 in (60 cm) from 7 mph (12 km/h) and an obstacle is located the sides of your vehicle. inside the detection area. Once the vehicle When the system detects an object close is stationary, the audio warning will be to the side of your vehicle, an audible stopped after 2 seconds and the visual warning sounds. As the object comes indication stops after 4 seconds. If the closer to the side of your vehicle, the rate obstacles detected are within 12 in of the audible warning increases. The rate (30 cm), the visual indication remains on. of the audible warning varies depending If the transmission is in neutral (N), the on whether the obstacle is inside or outside system provides visual indication only of the driving path of your vehicle. when your vehicle is moving at 7 mph (12 km/h) or below and an obstacle is located inside the detection area. Once your vehicle is stationary, the visual indication will stop after 4 seconds. 185 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
