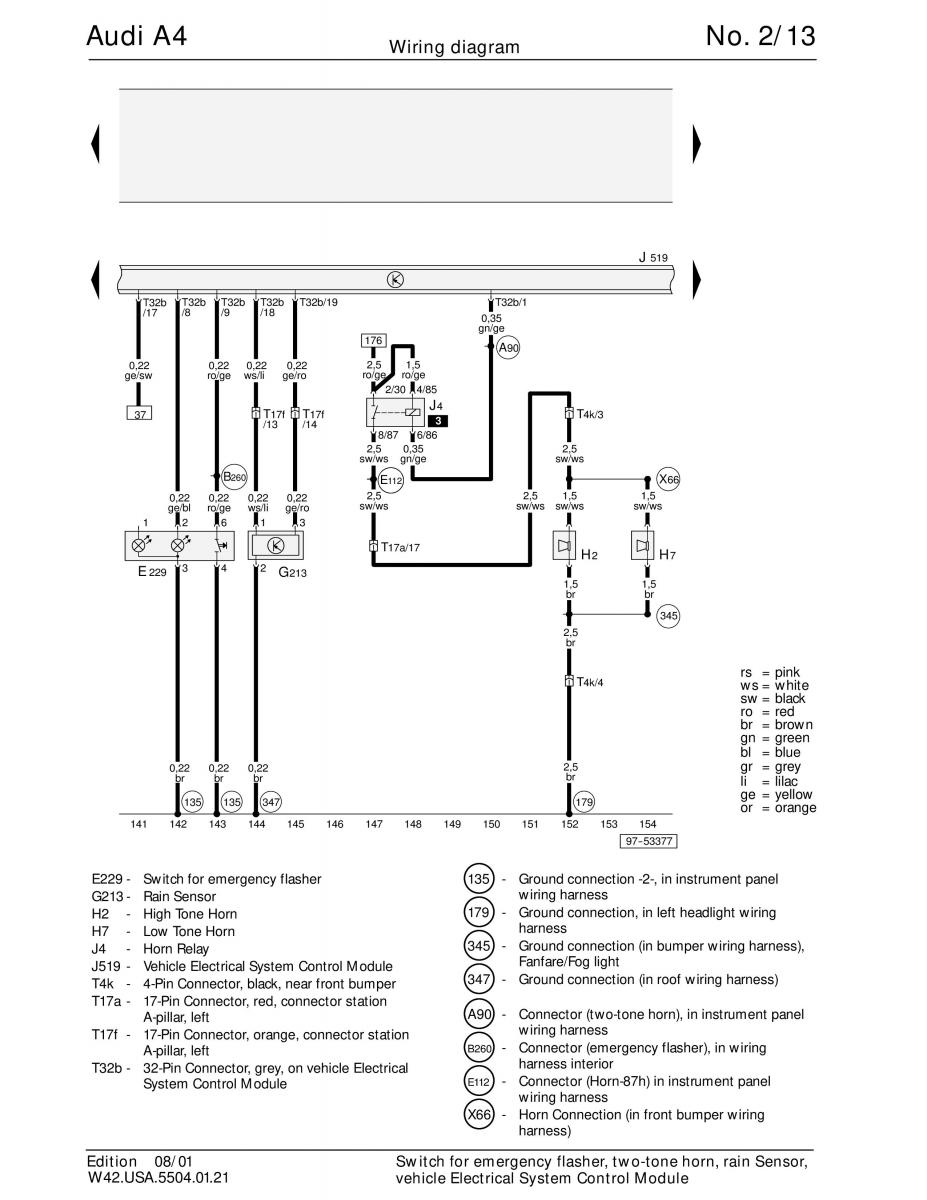

AudiA4 Wiringdiagram No.2/13 J 519 T32bT32b T32b T32b T32b/19 T32b/1 /17 /8 /9 /18 0,35 gn/ge 176 A90 0,22 0,22 0,22 0,22 2,5 1,5 ge/sw ro/gews/lige/ro ro/gero/ge 2/304/85 37 T17f T17f J4 T4k/3 /13 /14 3 8/87 6/86 2,5 0,35 2,5 sw/wsgn/ge sw/ws B260 EE111122 X66 0,22 0,22 0,22 0,22 2,5 2,5 1,5 1,5 ge/blro/gews/lige/ro sw/ws sw/ws sw/ws sw/ws 1 2 6 1 3 T17a/17 H2 H7 E229 3 4 2 G213 1,5 1,5 br br 345 2,5 br T4k/4 rs = pink ws=white sw = black ro = red br = brown gn = green bl = blue 0,22 0,22 0,22 2,5 gr = grey br br br br li = lilac 135 135 347 179 ge = yellow or = orange 141 142 143 144 145 146 147 148 149 150 151 152 153 154 97--53377 E229- Switchfor emergency flasher 135 - Groundconnection-2-, in instrument panel G213- RainSensor wiring harness H2 - HighToneHorn 179 - Groundconnection, in left headlight wiring H7 - Low ToneHorn harness J4 - Horn Relay 345 - Groundconnection(in bumper wiring harness), J519 - Vehicle Electrical System Control Module Fanfare/Fog light T4k - 4-Pin Connector, black, near front bumper347 - Groundconnection(in roof wiring harness) T17a - 17-Pin Connector, red, connector stationA90 - Connector(two-tone horn), in instrument panel A-pillar, left wiring harness T17f - 17-Pin Connector, orange, connector stationB260 - Connector (emergency flasher), in wiring A-pillar, left harness interior T32b- 32-Pin Connector, grey, on vehicle ElectricalE112-Connector (Horn-87h)in instrument panel System Control Module wiring harness X66 - HornConnection(in front bumper wiring harness) Edition 08/01 Switchforemergencyflasher,two-tonehorn,rainSensor, W42.USA.5504.01.21 vehicleElectrical System Control Module
